Product Description

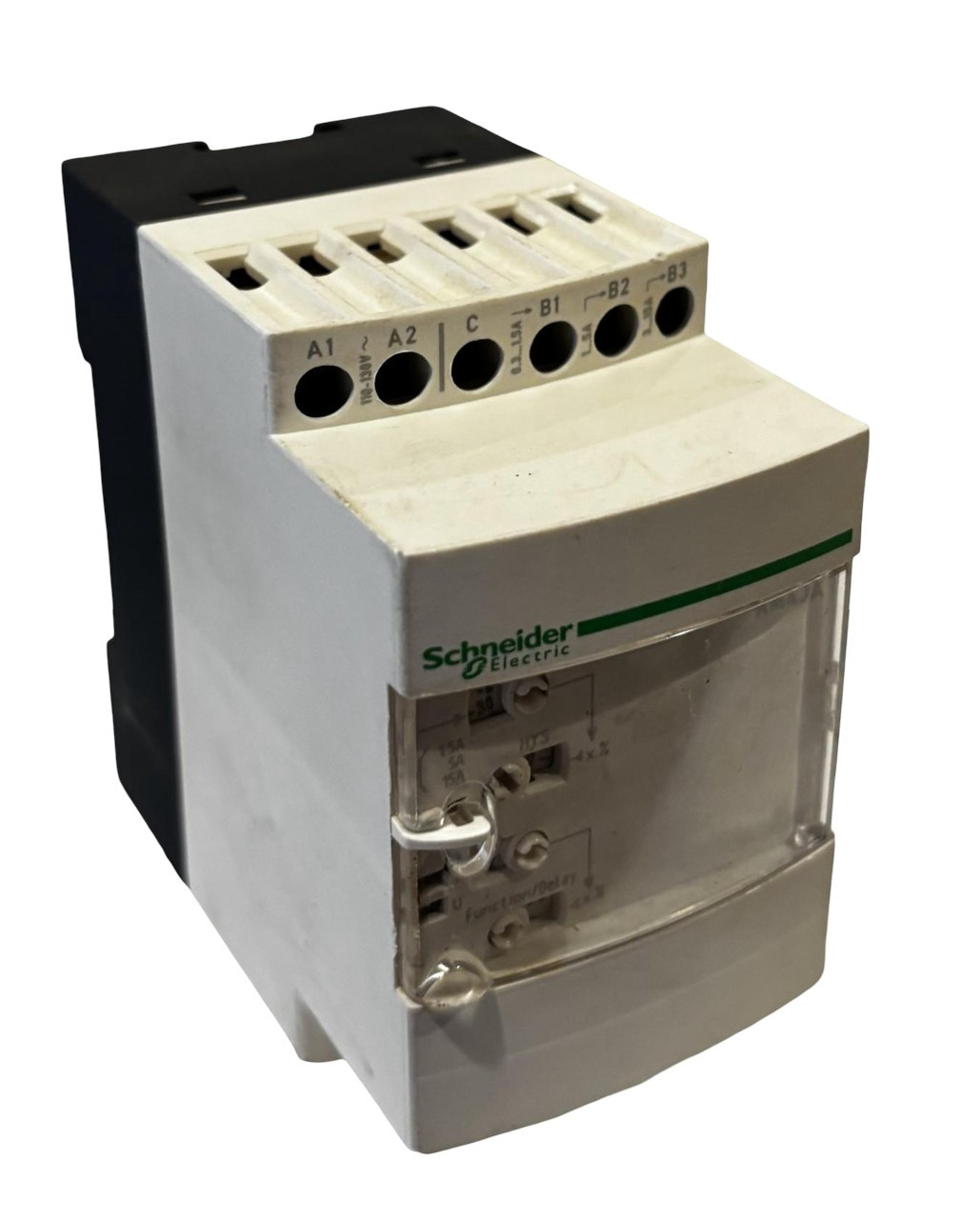

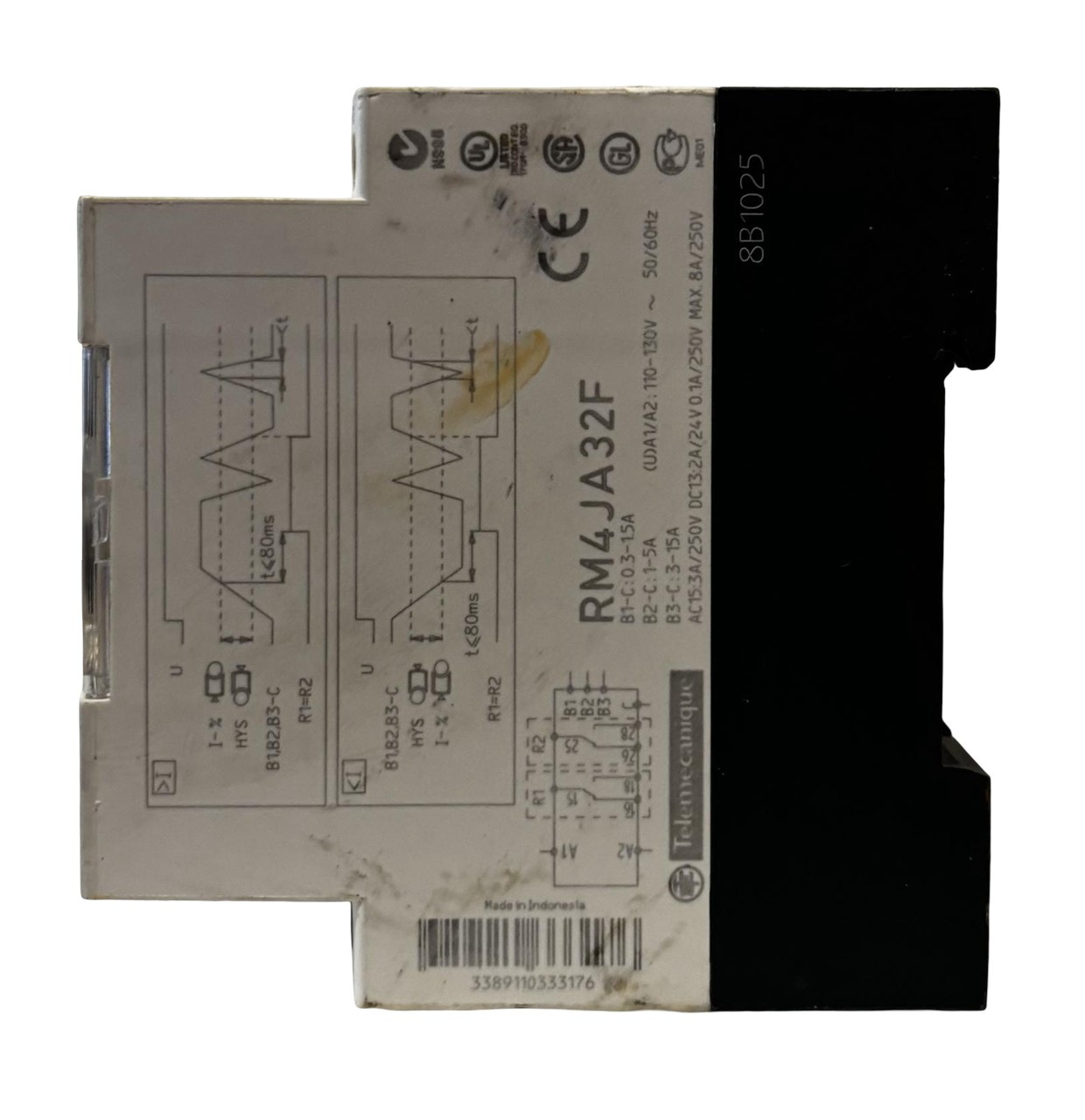

The Schneider Electric RM4JA32F is a precision current measurement relay from the Zelio Control RM4-J series, designed for industrial monitoring of over-current or under-current conditions.
Key Specifications:
-
Measurement range: 0.3–15 A (various sub-ranges)
-
Supply voltage: 110–130 V AC, 50/60 Hz
-
Time delay adjustable: 0.05–30 seconds
-
Outputs: 2 change-over contacts (2 C/O)
-
Mounting: Rail mounting (DIN rail compatible) with screw terminals.
-
Typical width: 45 mm (1.77 in) for compact panel layouts.
Applications:
Ideal for integration into control panels, motor protection systems, and automation setups where current monitoring, protection, and alarm functions are required. Professionals rely on its modular design, adjustable parameters, and OEM Schneider Electric quality to maintain safe and efficient operations.
