Product Description

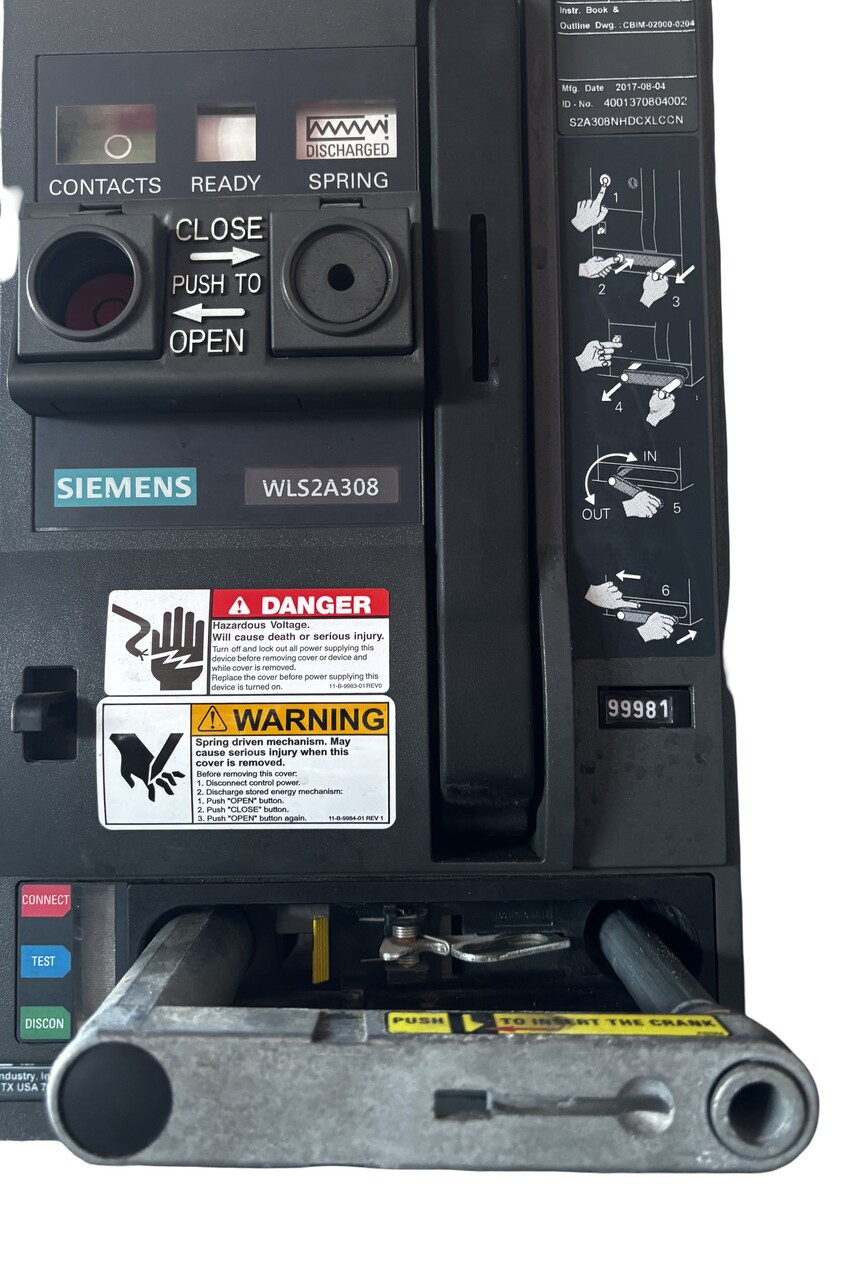

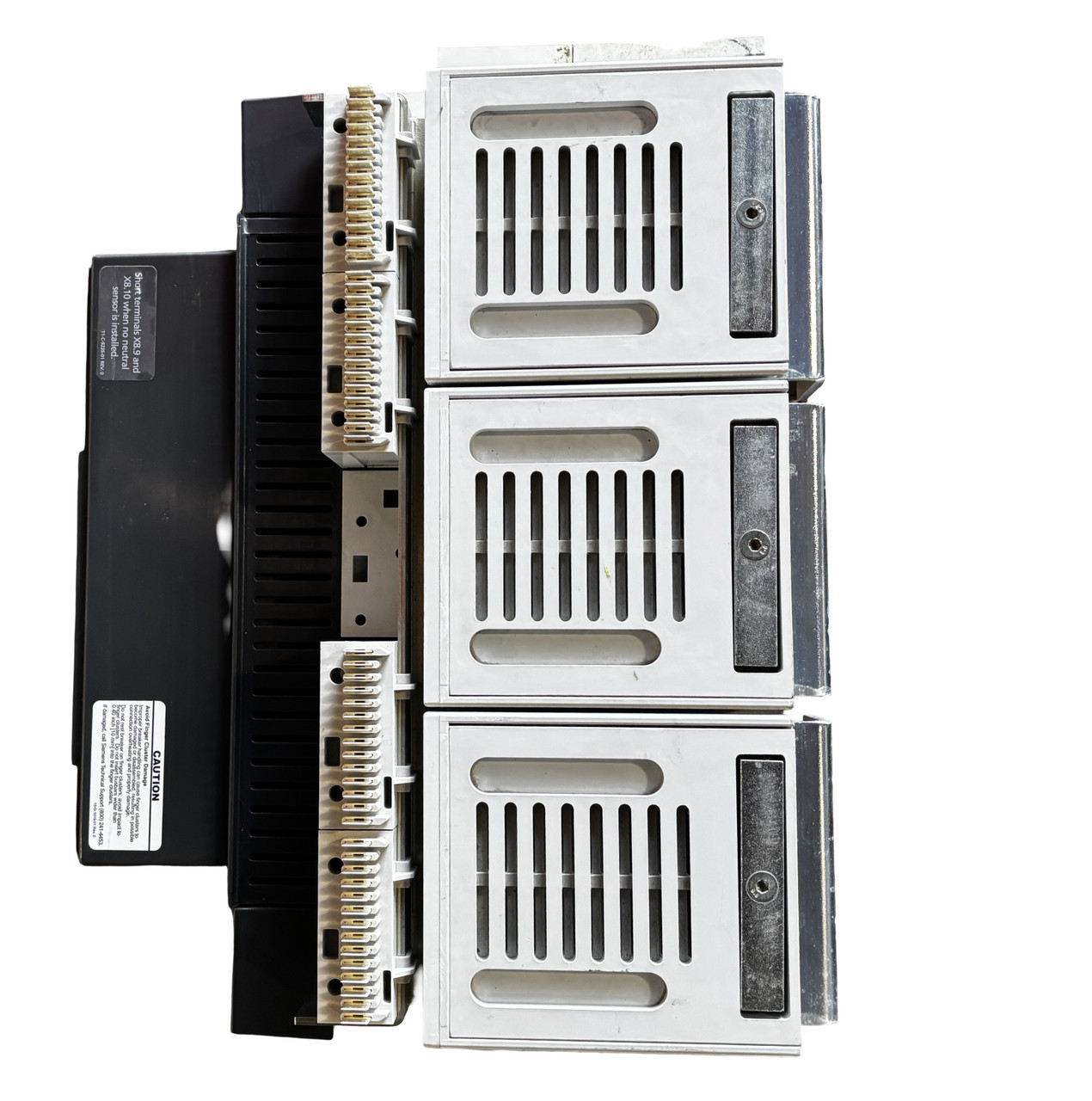

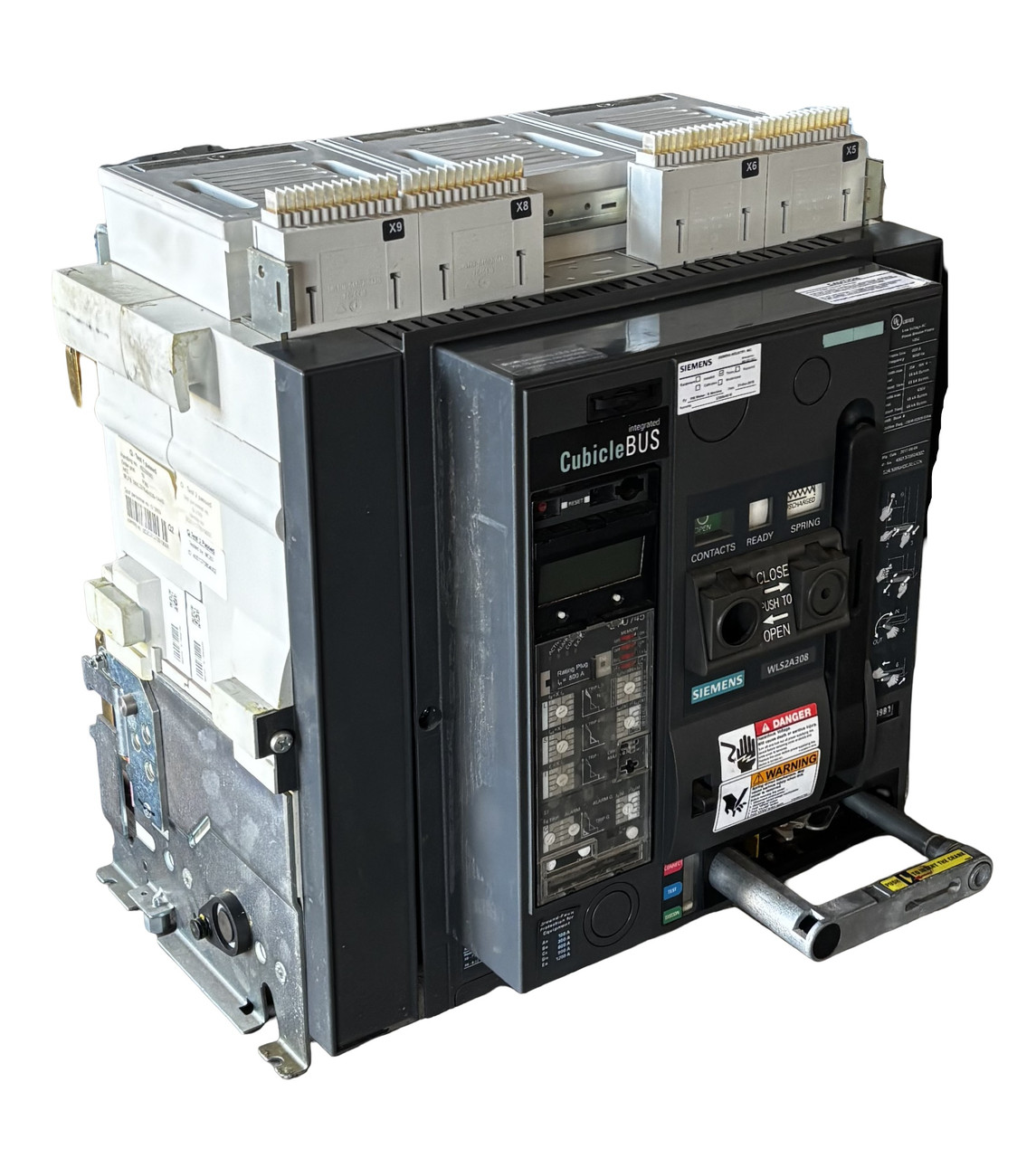

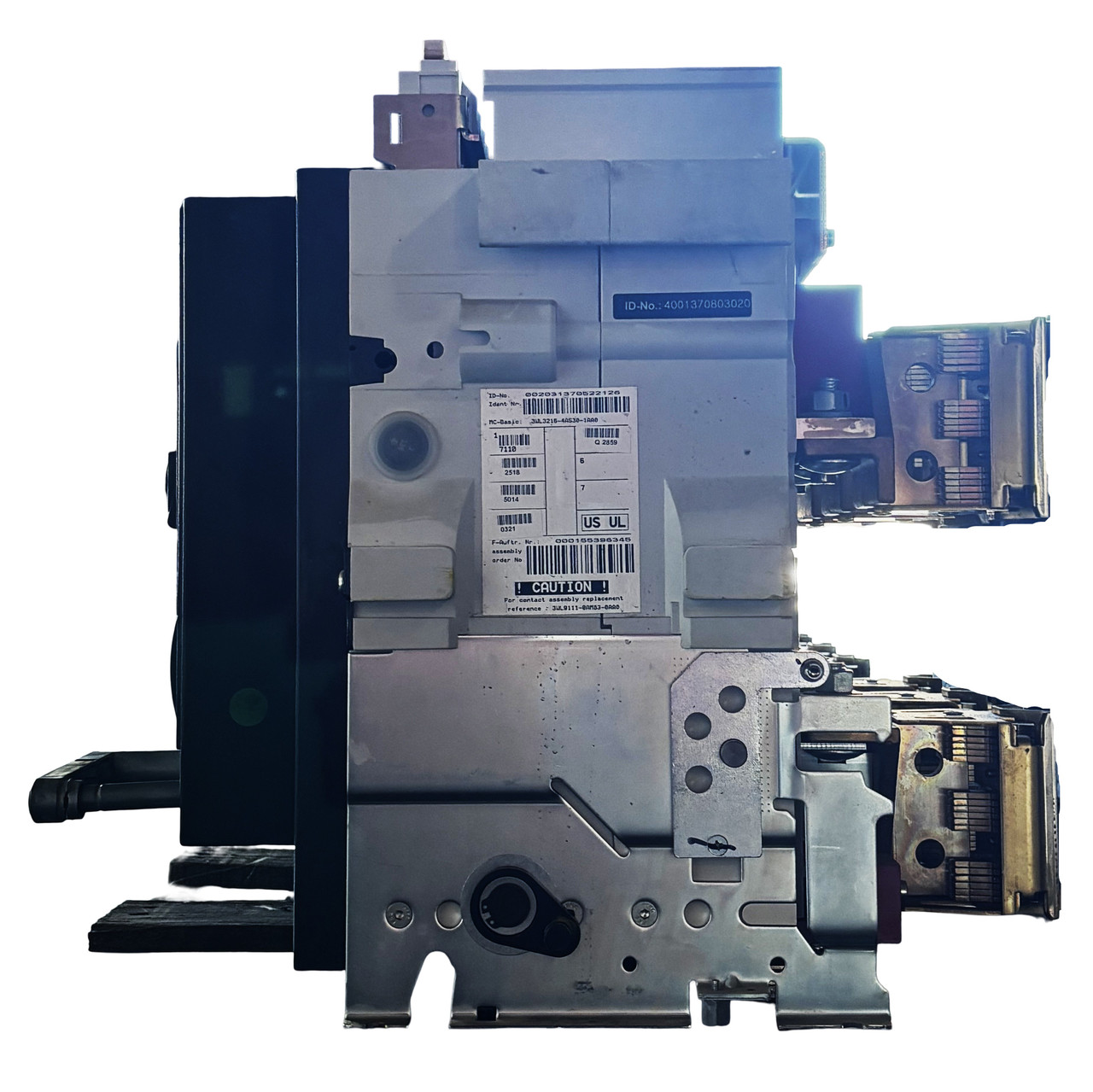

The Siemens 3WL3216-4AS30-1AA0 is a 3-pole, fixed-mounted air circuit breaker designed for low-voltage power distribution systems. Rated at 1600 A, it is part of the reliable Siemens SENTRON 3WL series, ideal for industrial plants, hospitals, and data centers. This breaker ensures protection against short circuits and overloads while offering modularity and communication integration for advanced energy management.
Key Features:
-
Reliable 3-pole air circuit breaker for low-voltage systems
-
Fixed-mounted configuration for secure installation
-
1600 A rated current, suitable for mission-critical applications
-
Rated operational voltage up to 690 VAC (1150 VAC for non-automatic switches)
-
Short-circuit breaking capacity: 55–85 kA at 500V AC
-

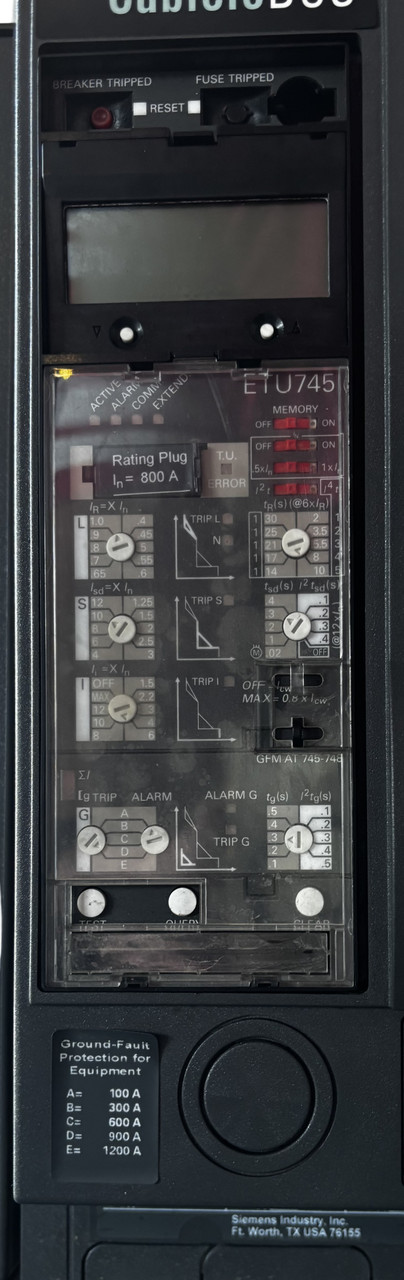

Modular design allows interchangeability of trip units and spring-charging motors
-
Communication capable with PROFIBUS, PROFINET I/O, or MODBUS modules
-
Approximate weight: 225 lbs
Technical Specifications:
-
Product Series: SENTRON 3WL
-
Frame Size: Size 1 (1600A)
-
Poles: 3
-
Frequency: 50/60 Hz
-
Application: Incoming-feeder, coupler, and outgoing-feeder breaker
-
Mounting: Fixed-mounted
Applications:
-
Industrial plants, hospitals, and data centers
-
Protection for electrical installations from short circuits and faults
-
Incoming, outgoing, and coupler feeder applications in power distribution
