Product Description
The Siemens HF368R is a heavy-duty fusible disconnect switch engineered for safe and reliable power distribution in demanding industrial and commercial settings. Rated at 1200A, 600V AC, 3-Pole, 3-Phase with a 200kA interrupting rating, this switch delivers superior protection for high-capacity systems.

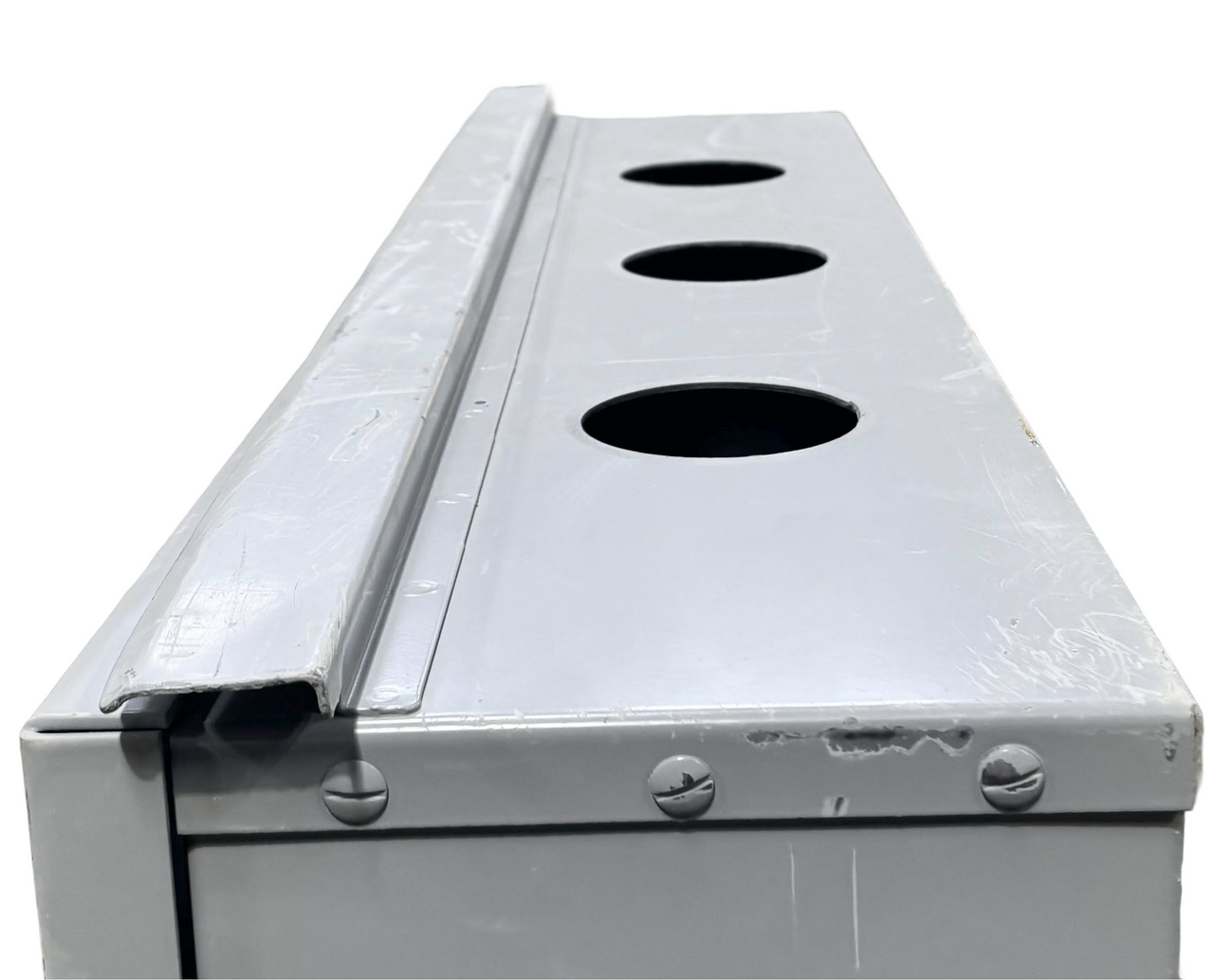

Designed with a NEMA 3R outdoor-rated enclosure, the HF368R is built to withstand harsh environments. This disconnect uses Class L fuses, providing dependable overcurrent protection for large-scale electrical installations.
✅ Technical Specifications:
-
Manufacturer: Siemens
-
Model: HF368R
-
Type: Fusible Disconnect Switch
-
Amperage: 1200A
-
Voltage: 600V AC
-
Poles: 3
-
Phase: 3-Phase
-
Interrupting Rating: 200kA
-
Fuse Type: Class L
-
Enclosure: NEMA 3R (Outdoor Rated)
✅ Key Features:
-
Heavy-duty 1200A fusible safety switch
-
Uses Class L fuses for high-capacity protection
-
High 200kA interrupt rating
-
NEMA 3R enclosure for indoor/outdoor use
-
Reliable Siemens quality for industrial applications
