Product Description

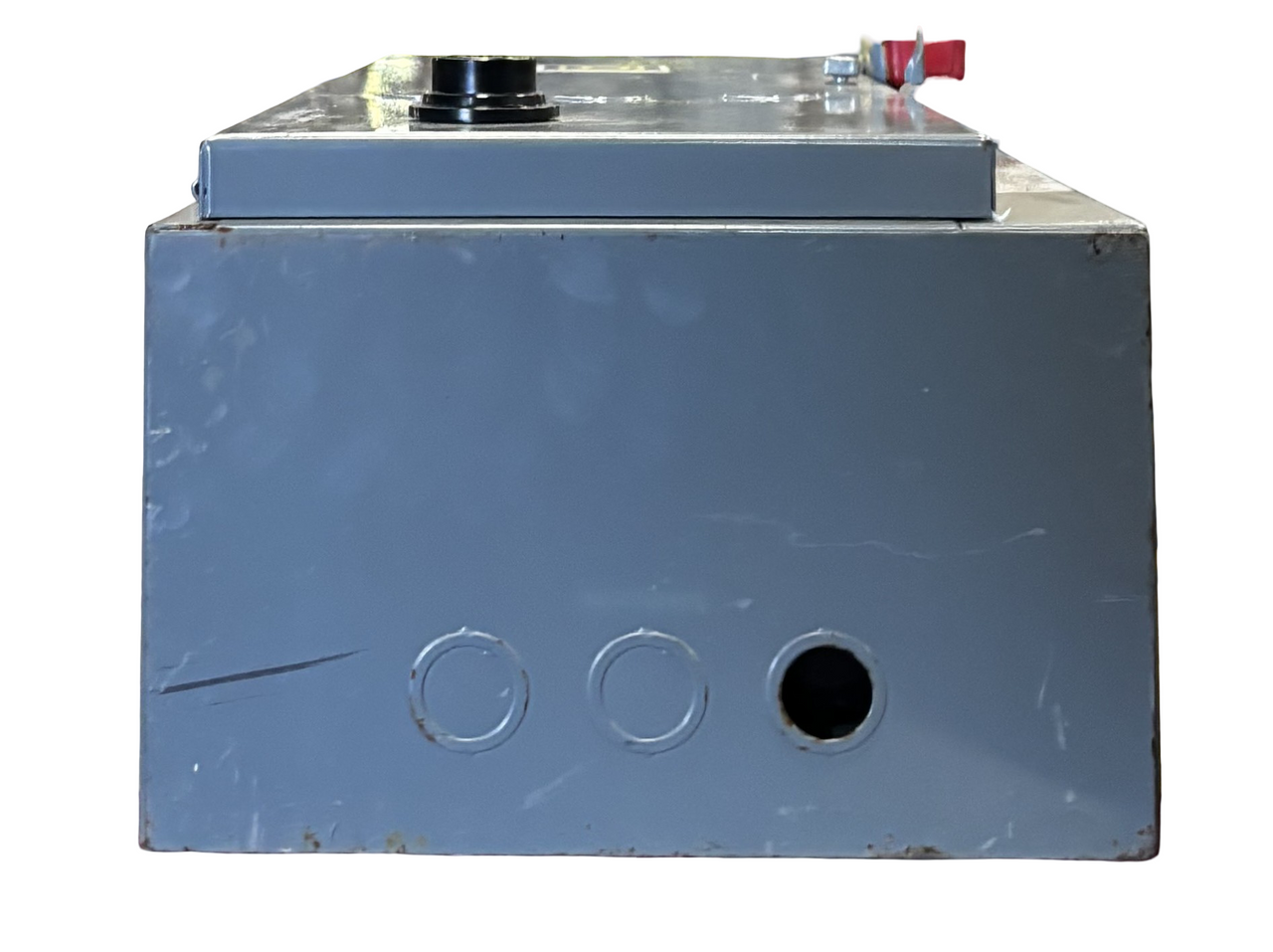

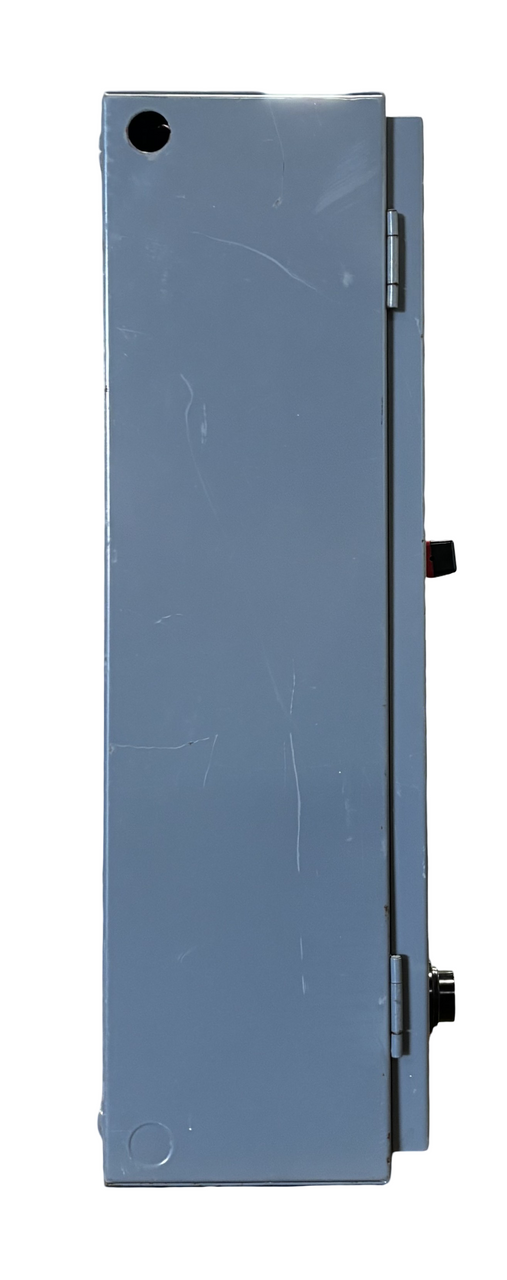

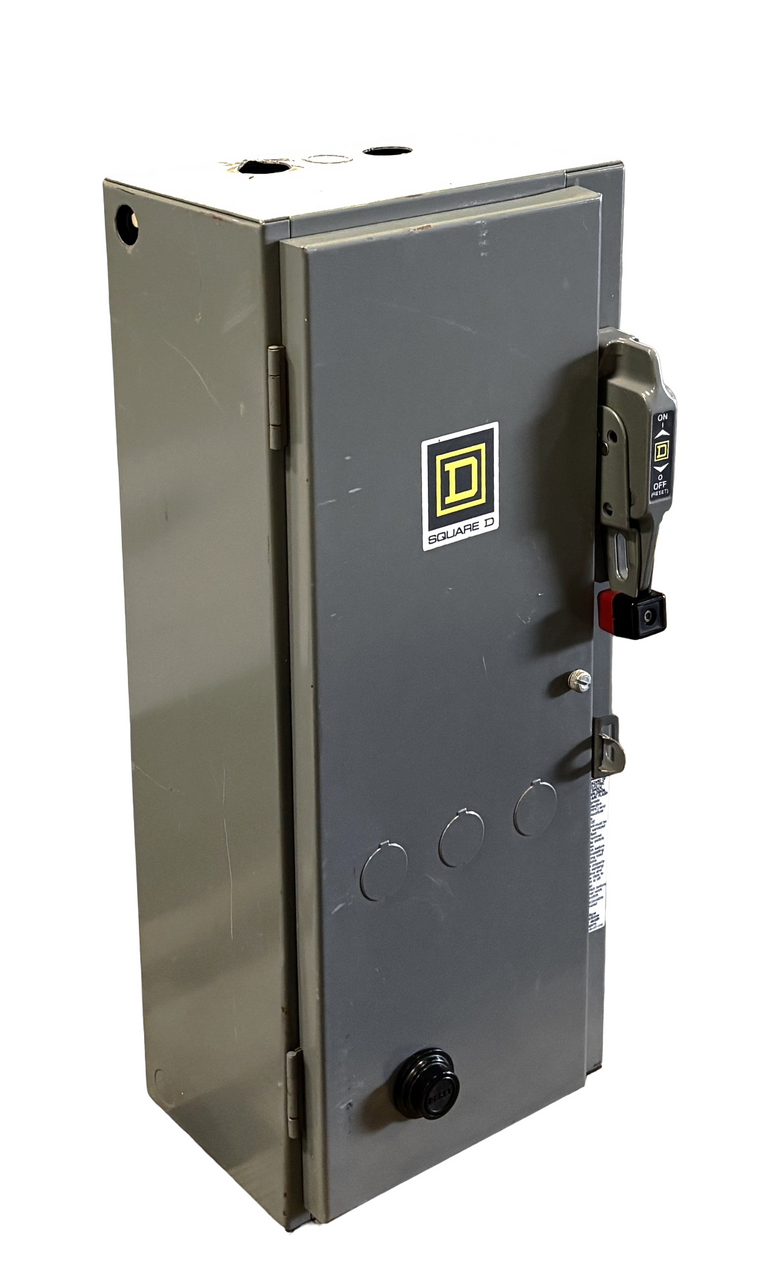

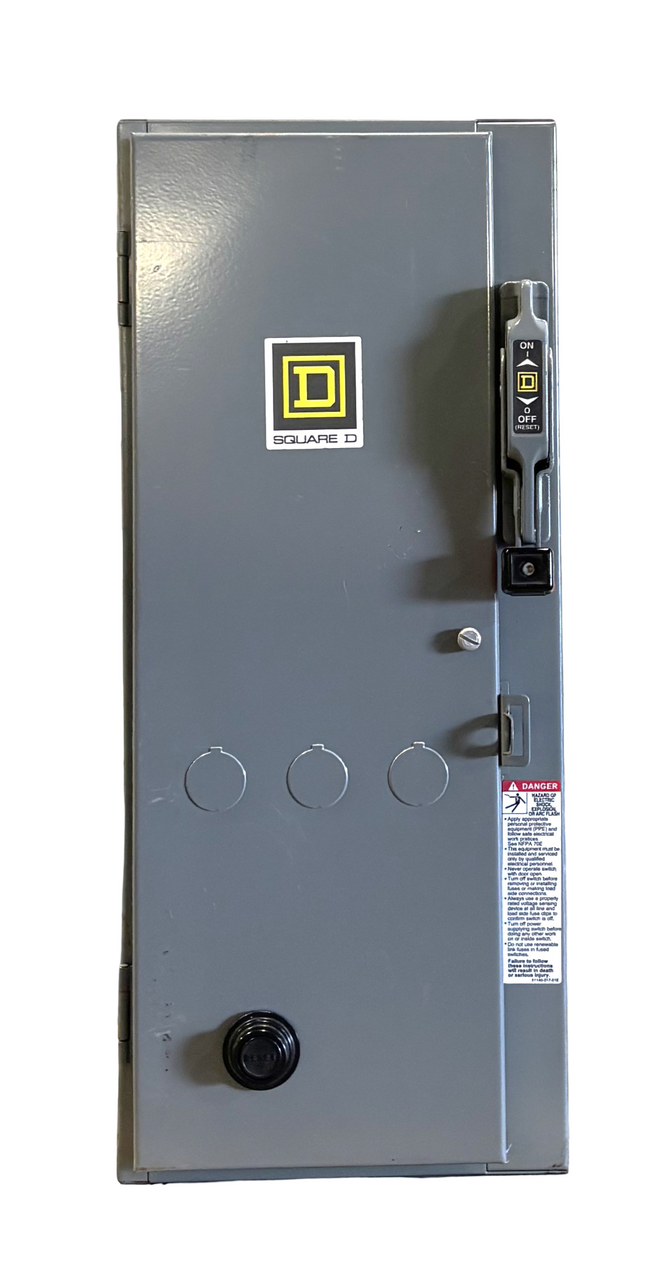

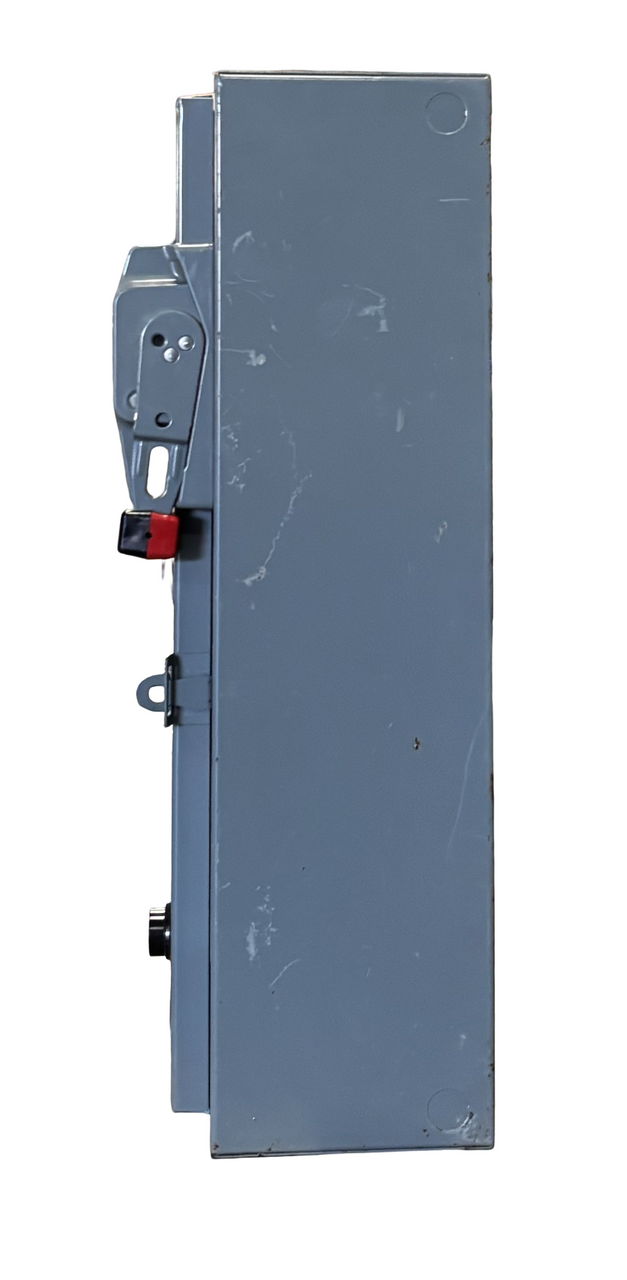

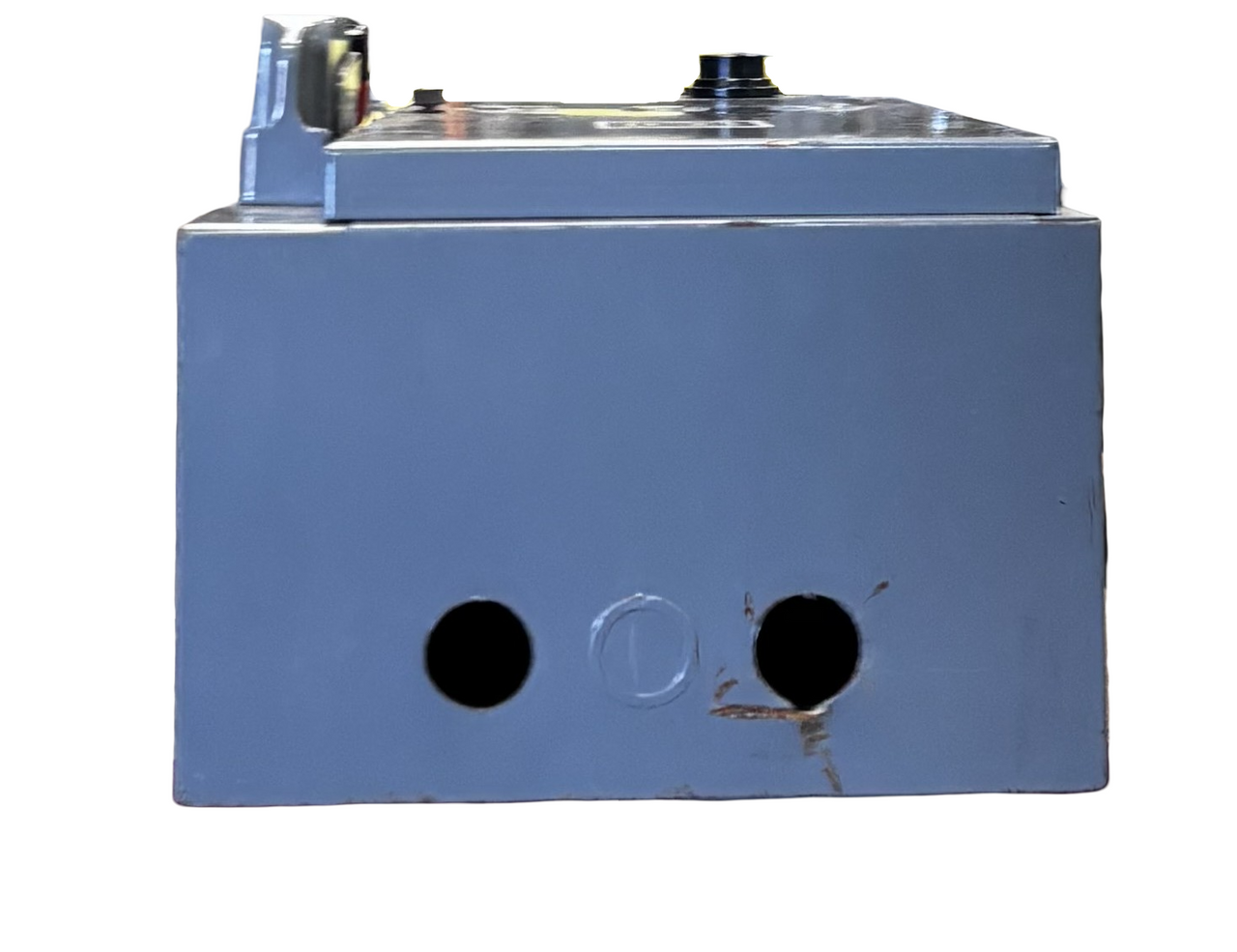

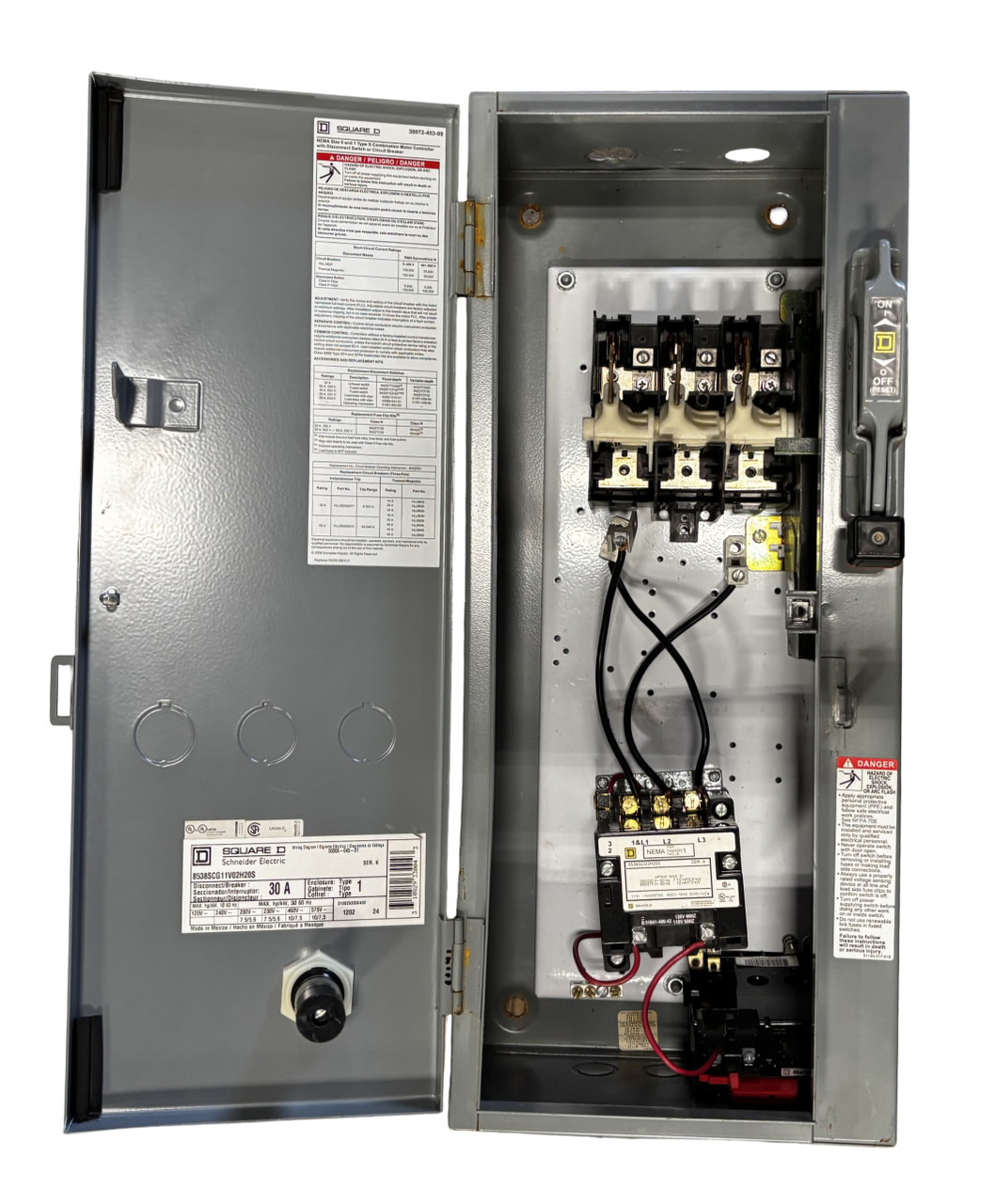

The Square D 8538SCG11V02H20S is a Type S combination motor starter designed for reliable motor control in commercial and industrial applications.
This non-reversing starter supports 7.5–10 HP motors across multiple voltages and features a solid-state Motor Logic class 20 thermal overload for precise motor protection.
Constructed with a NEMA 1 painted sheet steel enclosure and external reset, it provides durable indoor protection and ensures safe, efficient motor operation.
Ideal for 3-phase motors, this starter includes a non-fusible disconnect switch and is designed for systems with a separate control circuit, providing flexible and reliable control.
Features / Specifications:
• Brand: Square D

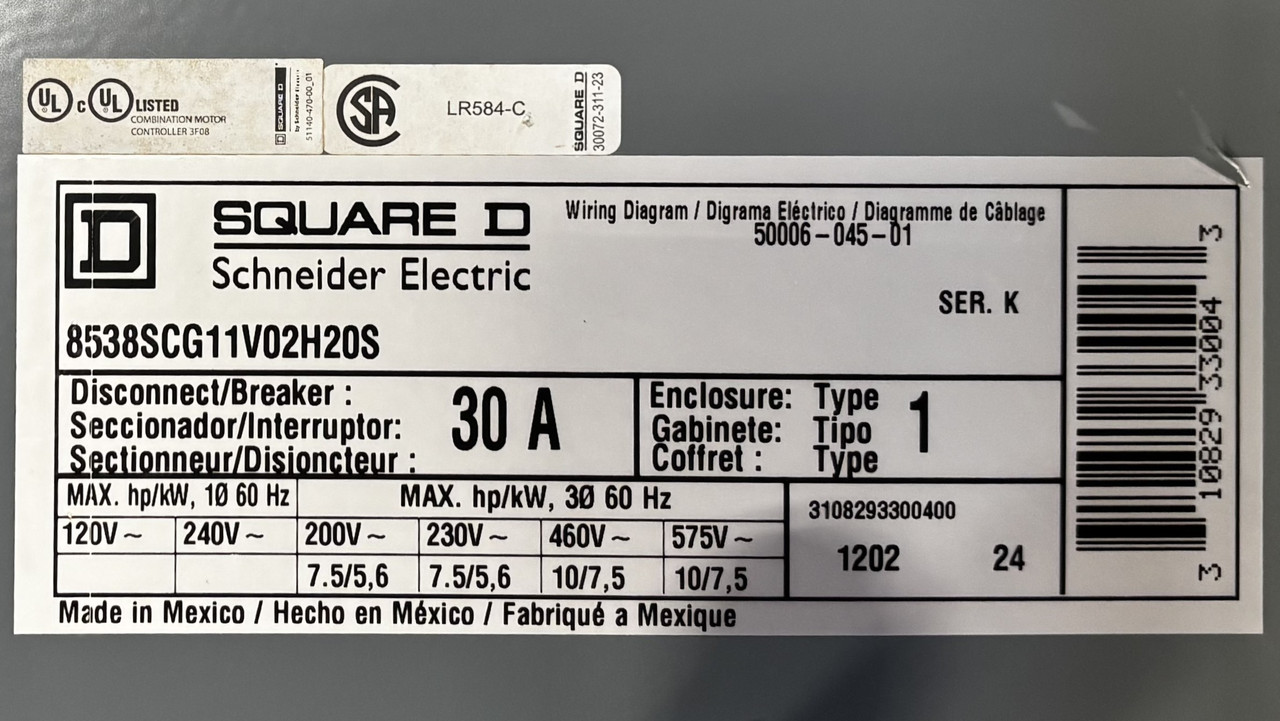

• Model / Part Number: 8538SCG11V02H20S
• Type: Combination Motor Starter Type S, Non-Reversing
• Number of Poles: 3P
• Horsepower Ratings:
– 7.5 HP at 200V AC, 3-phase
– 7.5 HP at 230V AC, 3-phase
– 10 HP at 460V AC, 3-phase
– 10 HP at 575V AC, 3-phase
• Maximum Voltage Rating: 600V AC
• Control Circuit Type: Separate control circuit
• Control Circuit Voltage: 110V AC 50Hz, 120V AC 60Hz
• Control Units: None
• Pilot Light: No indicator
• Auxiliary Contacts: Without

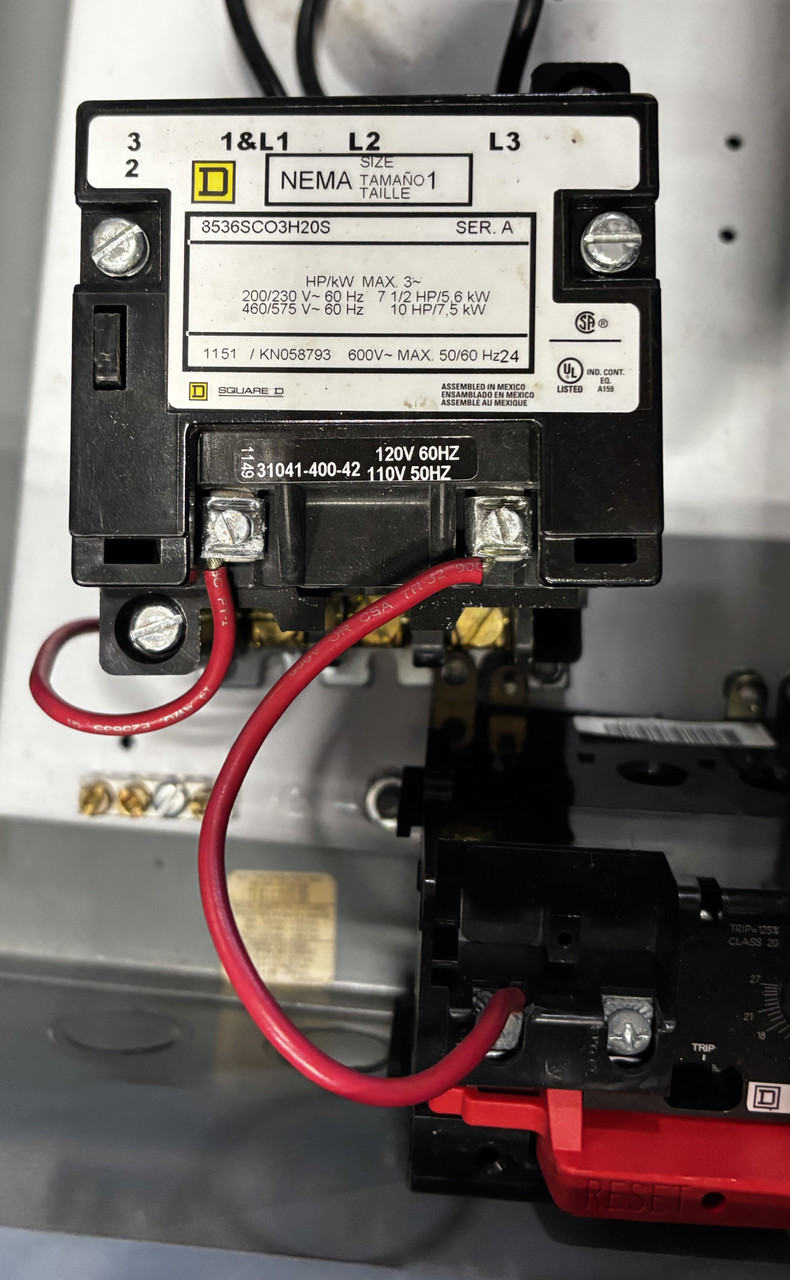

• Thermal Overload Type: Solid state Motor Logic Class 20
• Disconnect Type: Non-fusible disconnect switch
• NEMA Size: 1
• Enclosure Type: NEMA 1 painted sheet steel with external reset
• Application: Commercial and industrial motor control
