Product Description

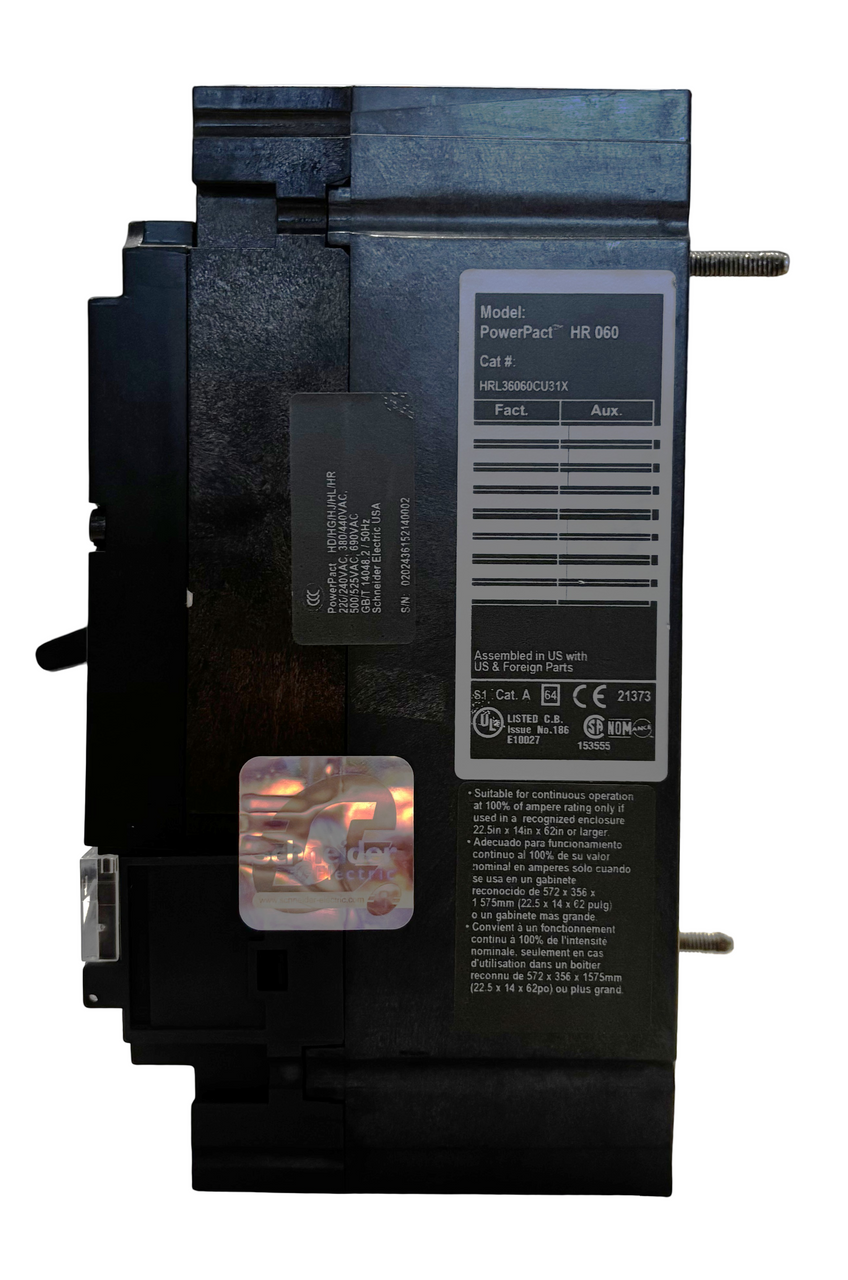

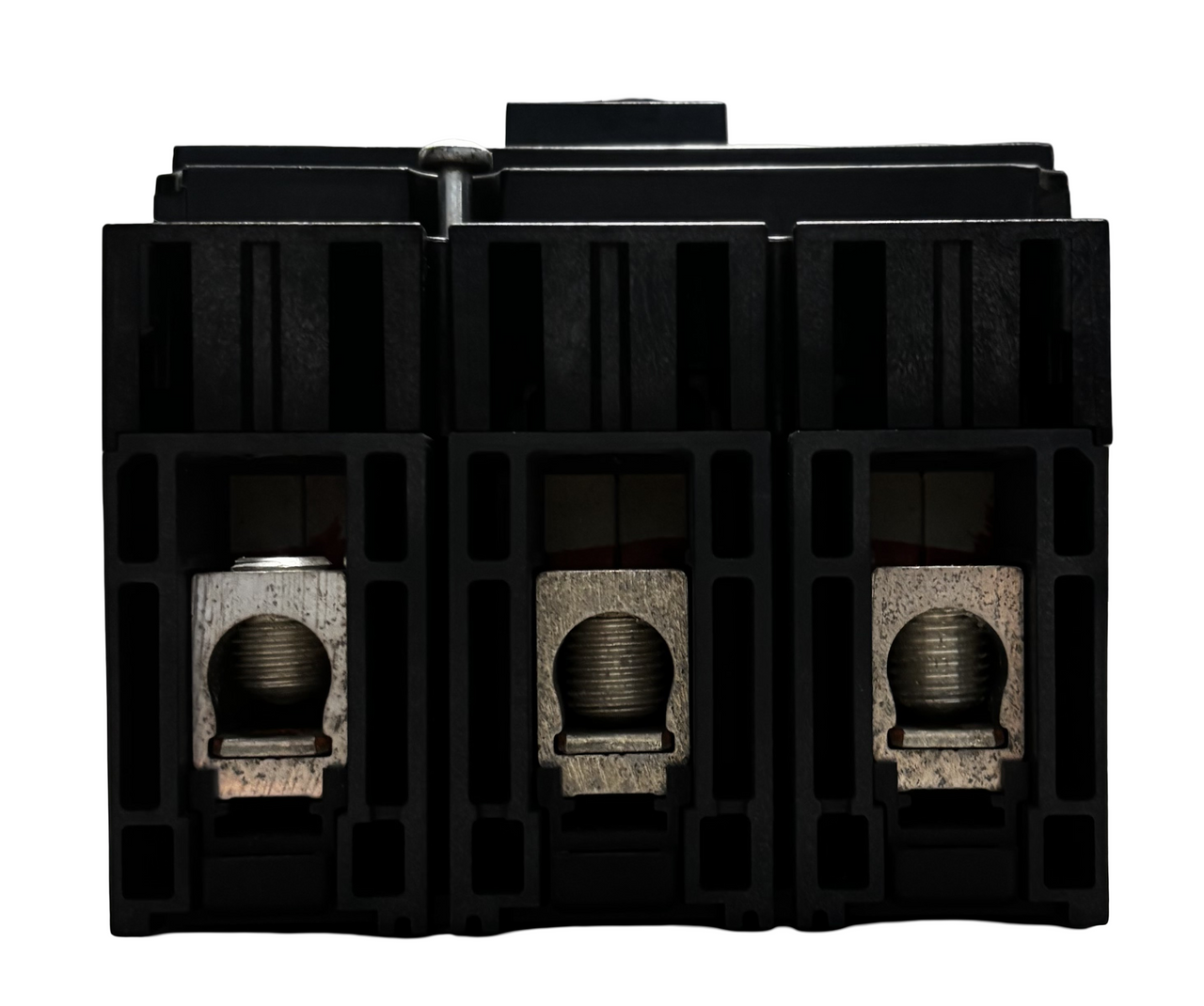

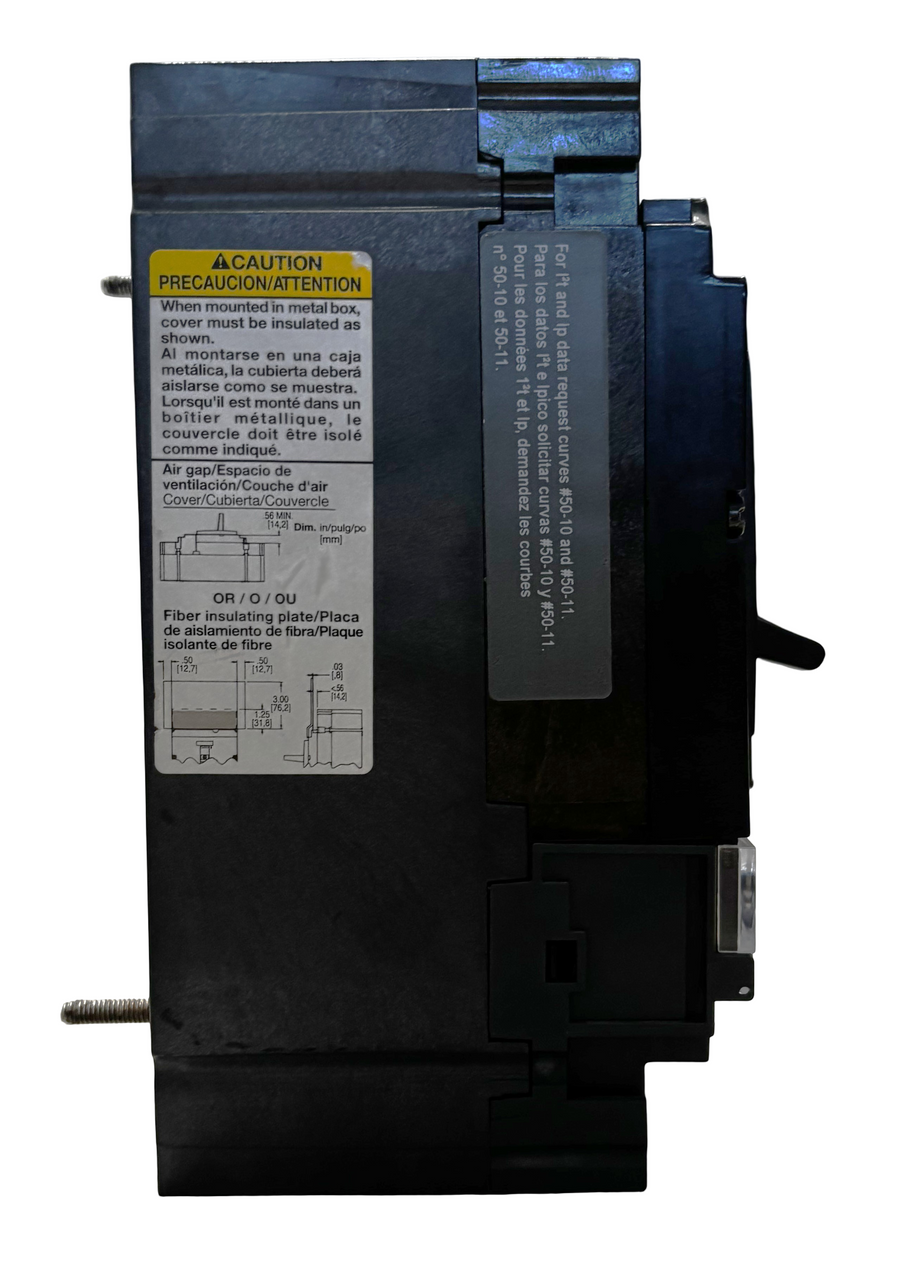

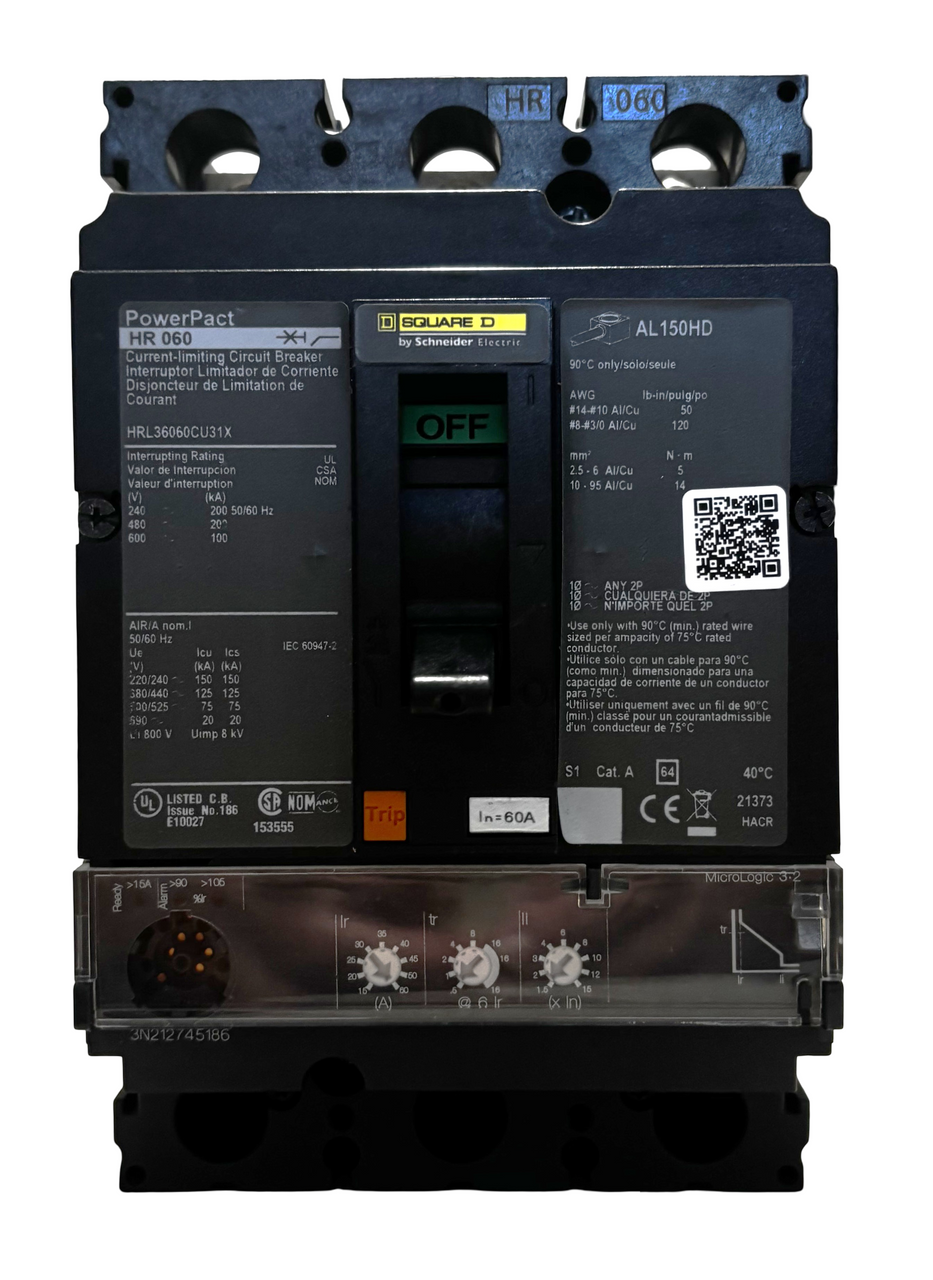

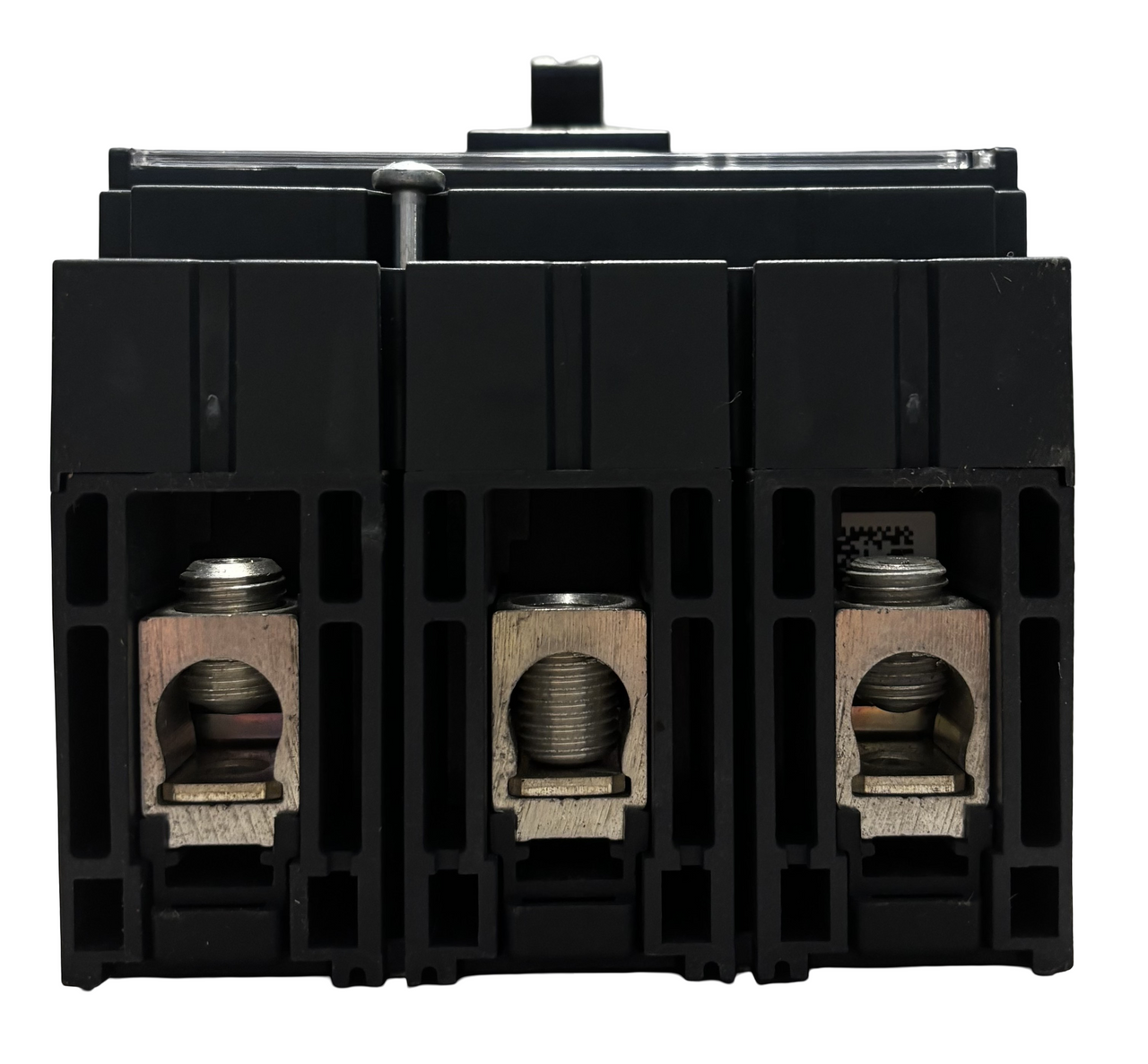

The Square D HRL36060CU31X is a premium 3-pole molded case circuit breaker (MCCB) designed for critical power protection in high-fault industrial environments. With a 200kA interrupting capacity at 480V AC, this breaker delivers exceptional short-circuit performance and meets the most demanding safety and reliability standards.
Rated for 60A and 600V AC, this breaker is part of the PowerPact H-Frame series and is equipped with a Micrologic electronic trip unit for advanced circuit protection, monitoring, and coordination. Ideal for mission-critical facilities, data centers, and high-energy electrical panels.
Key Specifications:
-
Brand: Square D (by Schneider Electric)
-
Model Number: HRL36060CU31X
-
Series: PowerPact H
-
Frame Type: H-Frame
-
Amperage Rating: 60 Amps
-
Voltage Rating: 600V AC
-
Poles: 3
-
Trip Unit: Micrologic Electronic Trip
-
Interrupting Rating: 200kA @ 480V AC
-
Mounting Style: Fixed
-
Certifications: UL 489, CSA, IEC 60947-2
-
Application: Industrial switchgear, data centers, hospitals, OEM, panelboards
This high-performance breaker is ideal for applications requiring maximum fault current protection, compact size, and smart electronic trip functionality.
