Product Description

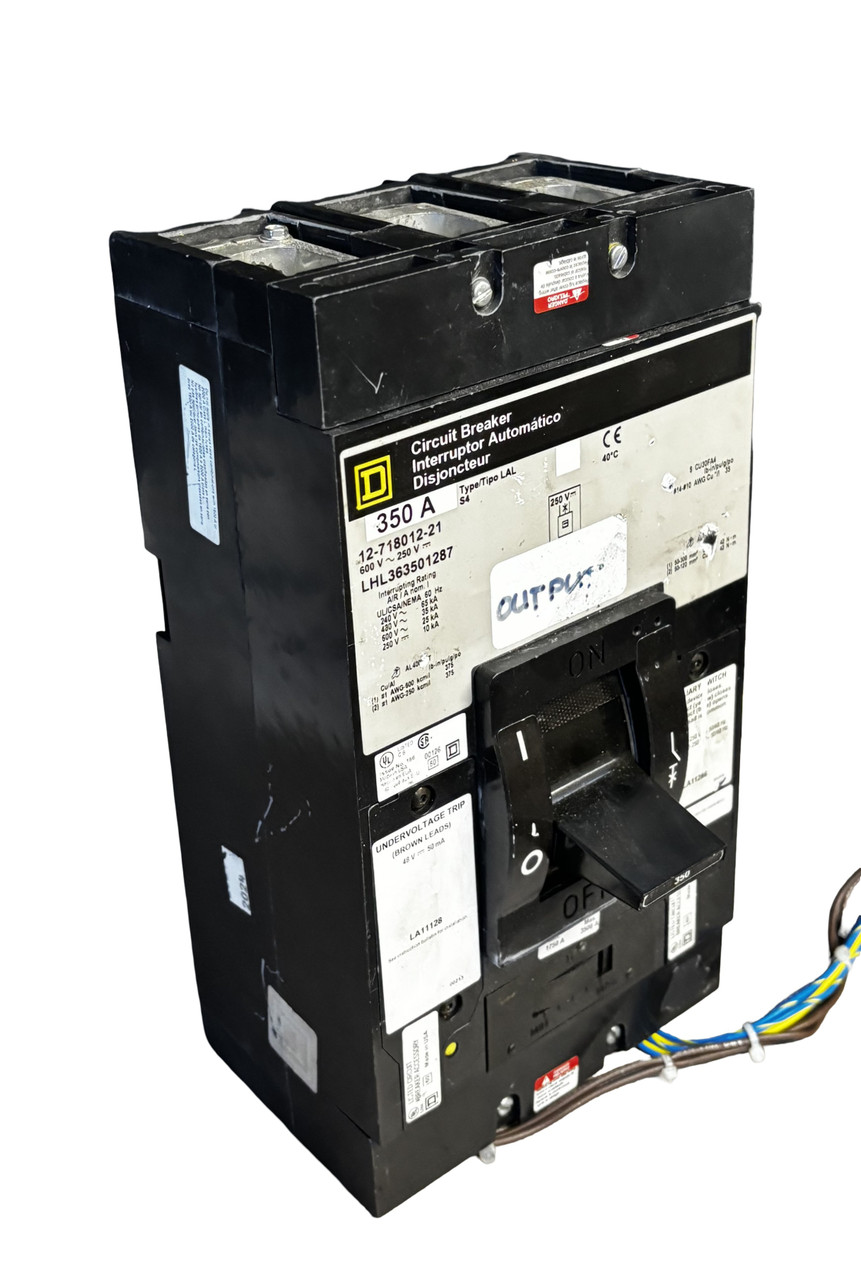

The Square D LHL363501287 is a high-performance DC molded case circuit breaker built for industrial and commercial power systems.
Rated at 350A and 600V, this 3-pole, 3-phase breaker provides thermal magnetic protection with LI (long-time and instantaneous) trip functions.
It features feed-thru line and load side lug terminals for versatile wiring and includes a 48VDC undervoltage trip with 1A/1B auxiliary switch for added monitoring and control.
With a high interrupting capacity of 35kA at 480V, the LHL363501287 is ideal for industrial DC applications requiring reliable protection in demanding environments.
Features & Specifications
• Brand: Square D
• Series: LHL Series
• Model: LHL363501287
• Poles: 3-Pole, 3-Phase
• Amperage: 350A
• Voltage Rating: 600V DC
• Trip Type: Thermal Magnetic
• Trip Functions: LI – Long-Time & Instantaneous

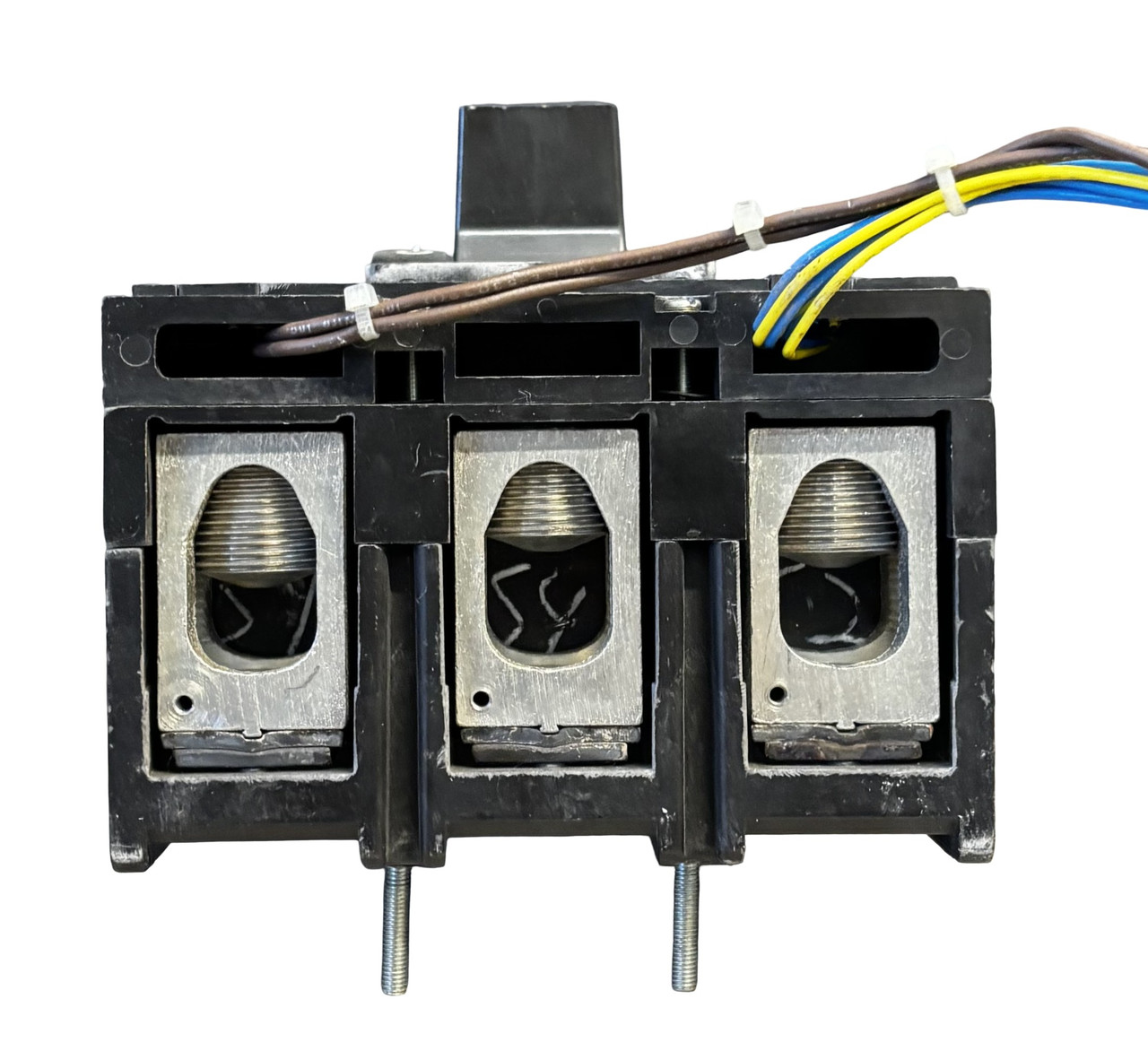

• Connection Type: Feed-Thru, line & load side lugs
• Undervoltage Trip: 48VDC
• Auxiliary Contacts: 1A / 1B
• Interrupting Capacity: 35kA @ 480V
• Application: Industrial DC power distribution, switchgear, heavy-duty panels
