Product Description

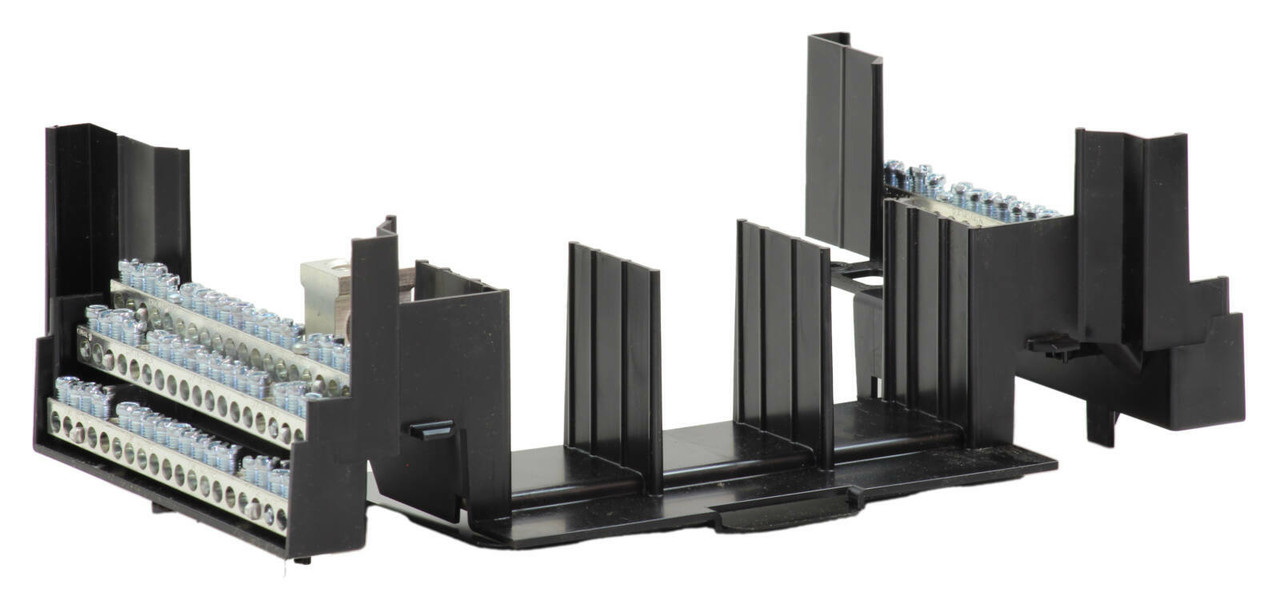

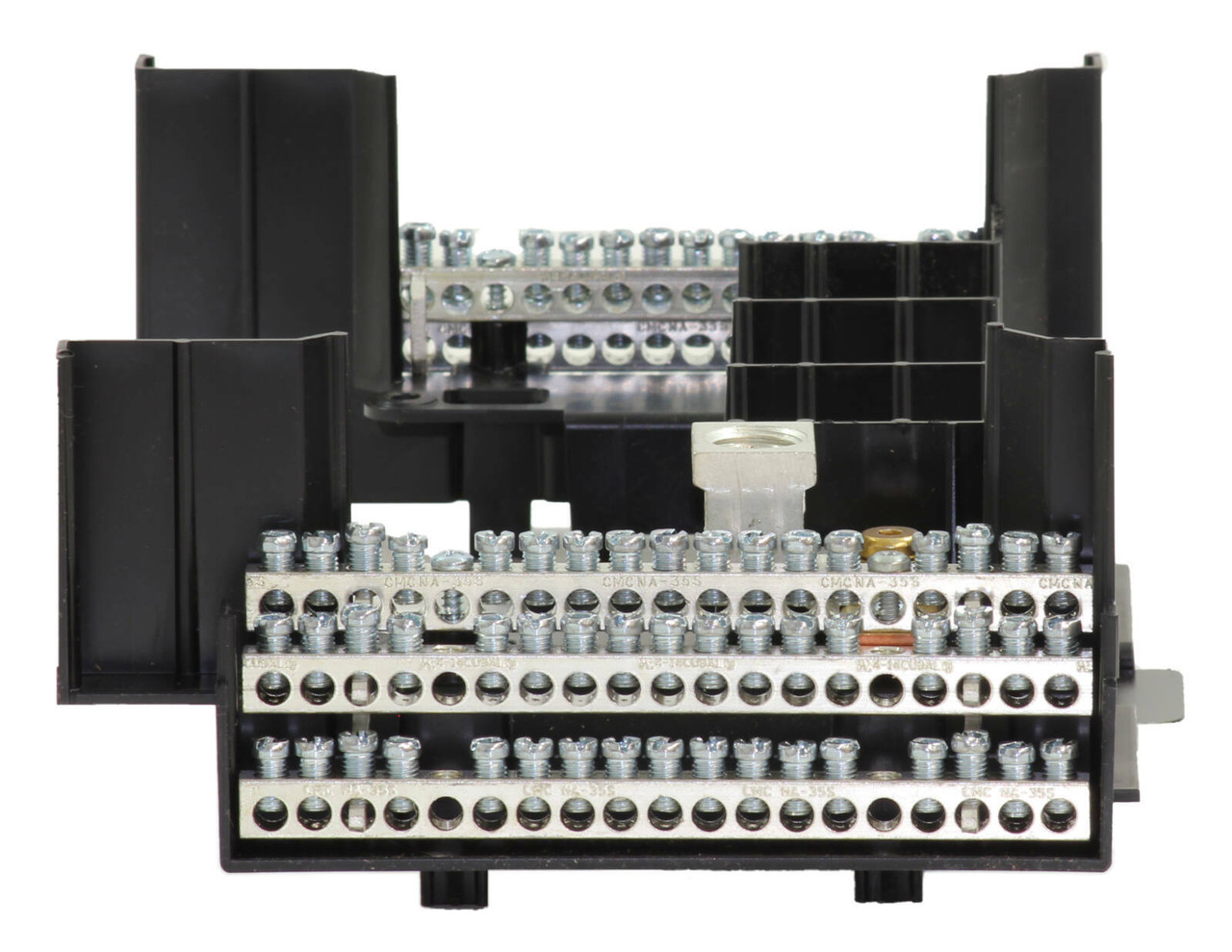

The Square D NQN2CU is a high-conductivity, 100% rated copper neutral assembly kit specifically engineered for Square D NQ Series panelboards. This kit is a critical component for contractors and facility managers performing new installations or electrical upgrades that require a robust 225A neutral connection.
Fabricated from pure electrical-grade copper, this kit ensures maximum efficiency and superior heat dissipation compared to standard aluminum alternatives. It provides a dedicated, secure termination point for neutral conductors, maintaining the integrity of the electrical distribution system in commercial and industrial environments.
? Technical Specifications
-
Manufacturer: Square D (Schneider Electric)
-
Part Number: NQN2CU
-
Current Rating: 225 Amps
-
Material: 100% High-Strength Copper
-
Panelboard Compatibility: Square D NQ Series exclusively
-
Mounting Style: Surface Mount / Interior Accessory
-
Number of Conductors: 10 (Main Terminal + Branch Connections)
-
Kit Contents: Neutral assembly bar and (2) 10-32 TPI x 7/16" tapping screws
-
Certifications: cULus Listed, ARRA, BAA, and RoHS Compliant
-
Warranty: 18-Month Manufacturer Warranty
✅ Key Features & Benefits
-
Copper Conductivity: The 100% copper construction offers the lowest resistance and best corrosion protection, meeting the highest specifications for mission-critical power distribution.
-
NQ Series Optimized: Designed by Schneider Electric for a precision fit within NQ panelboards, ensuring no field modifications are required for a standard installation.
-
100% Rated Performance: Fully rated to handle its nameplate amperage continuously, providing a higher safety margin and better long-term reliability than 80% rated components.
-
Complete Installation Kit: Includes the necessary high-torque tapping screws, allowing for immediate out-of-the-box installation onto the panelboard interior.
-
Regulatory Compliance: Meets cULus safety standards and is fully compliant with "Buy American" (BAA) and ARRA requirements for government and infrastructure projects.
