Product Description

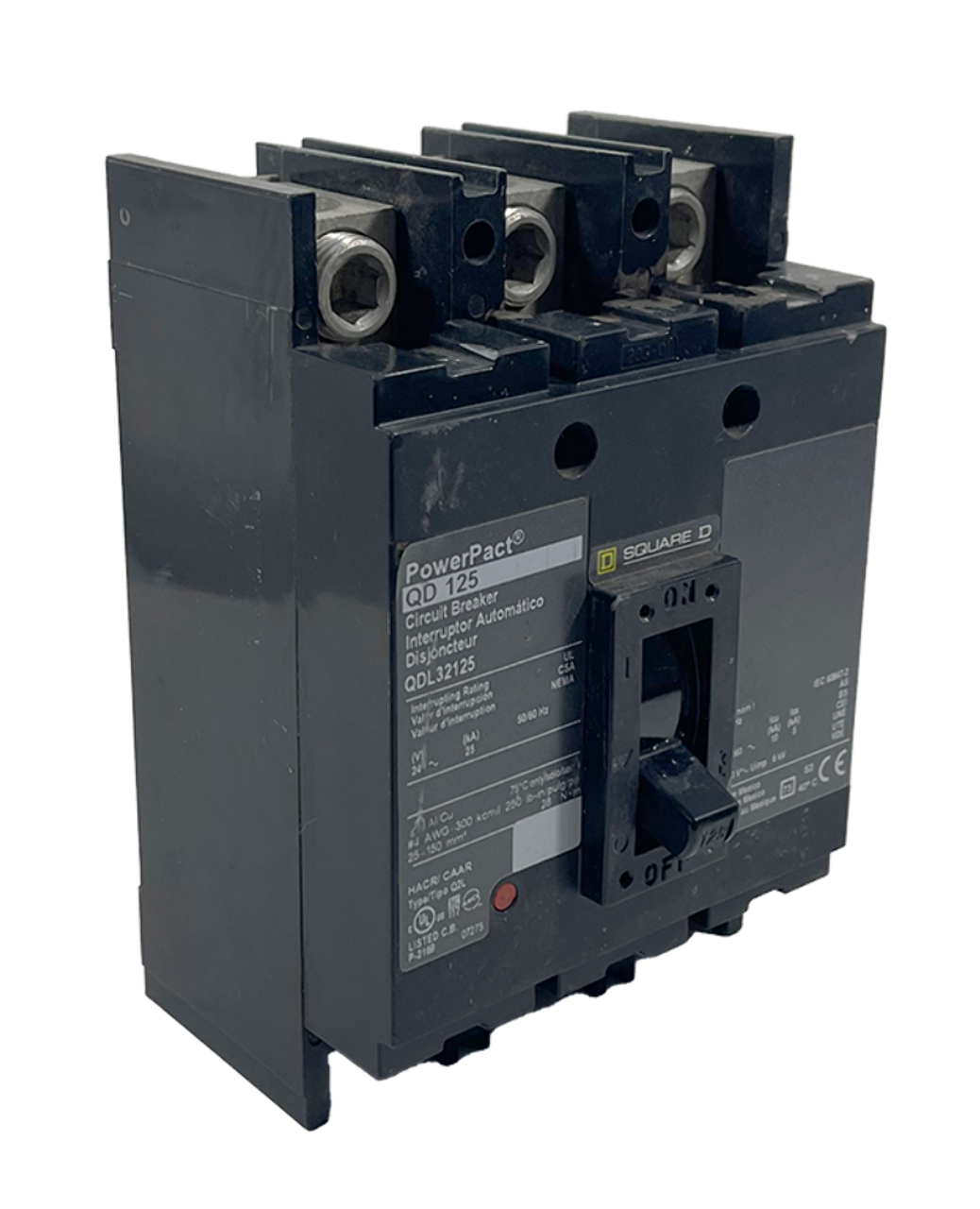

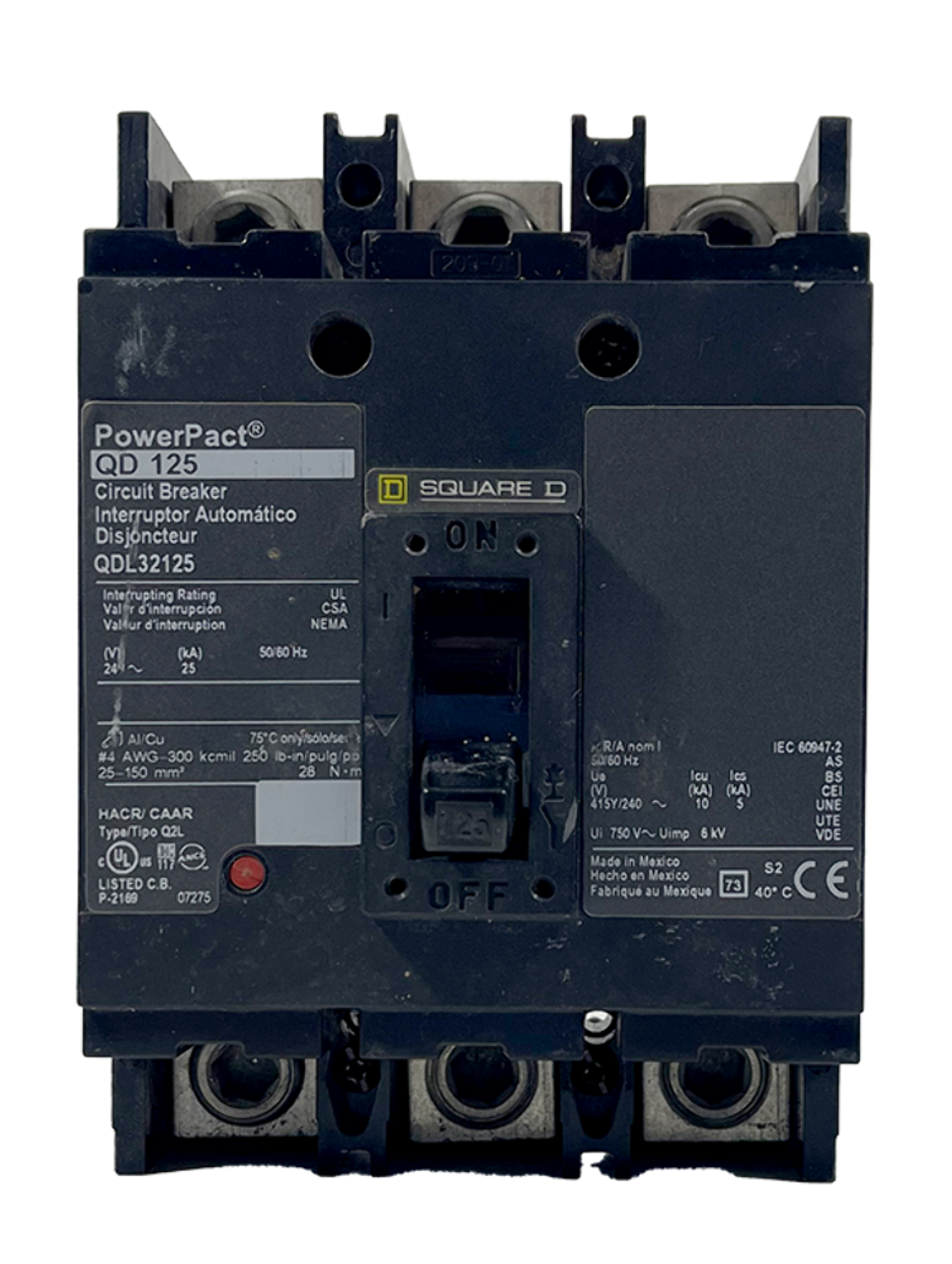

The Square D QDL32125 is a premium QDL Series molded case circuit breaker designed by Schneider Electric. Rated for 125 amps, this 3-pole breaker operates at 240V AC and provides reliable overcurrent protection for residential, commercial, and light industrial electrical systems.
The QDL32125 features a thermal-magnetic trip unit, ensuring accurate protection against overloads and short circuits. Its bolt-on mounting makes it a fast, secure fit in compatible QO load centers and panelboards. UL listed for use in a variety of distribution applications.
✅ Key Specifications:
-
Brand: Square D / Schneider Electric
-
Model: QDL32125
-
Series: QDL
-
Amperage Rating: 125A
-
Voltage Rating: 240V AC
-
Poles: 3
-
Trip Unit Type: Thermal Magnetic
-
Interrupting Rating: 25kA @ 240V AC
-
Mounting Type: Bolt-On
-
Frequency: 50/60 Hz
-
Certifications: UL Listed, CSA Certified
-
Application: Panelboards, OEMs, distribution panels
