Product Description

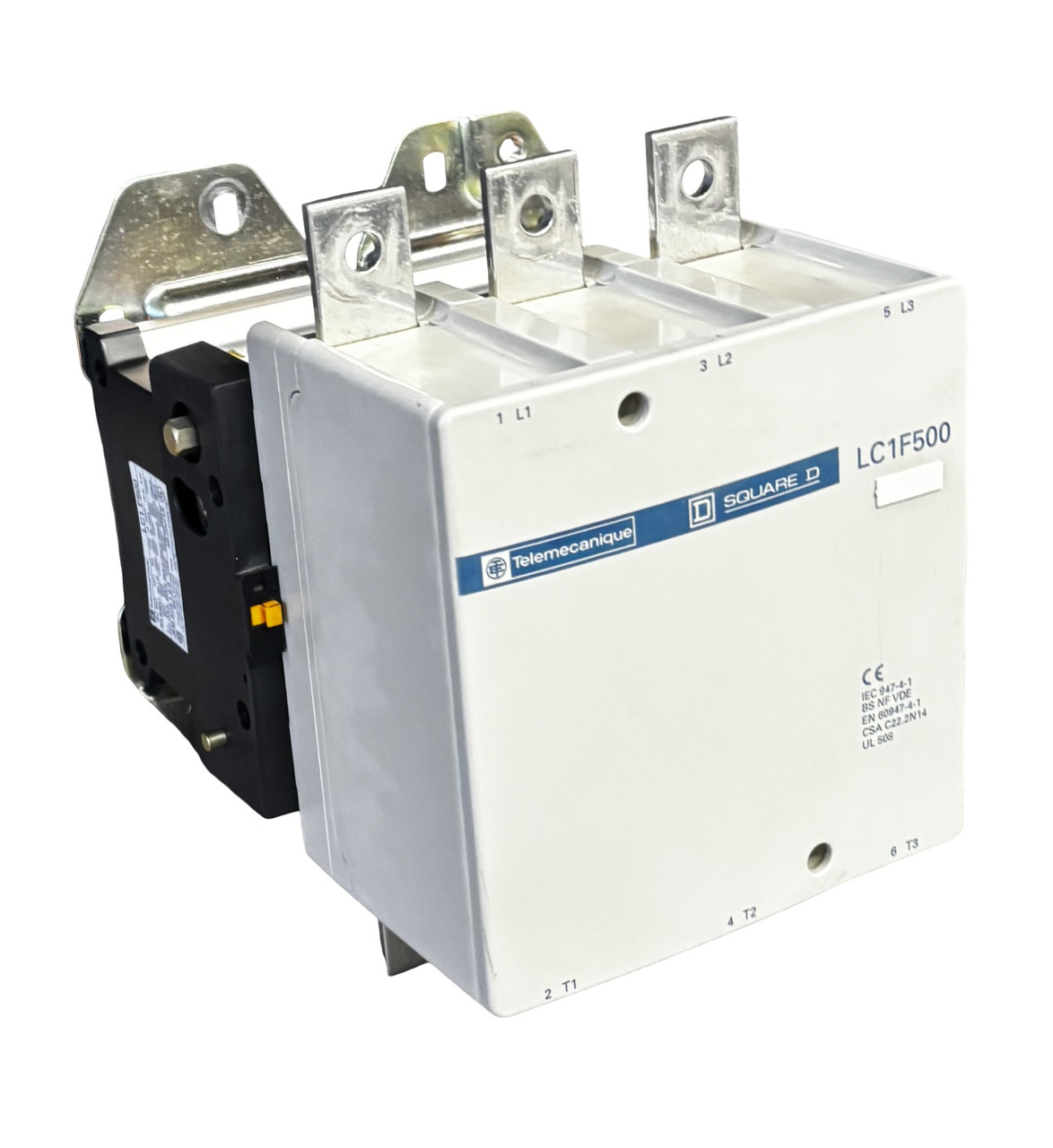

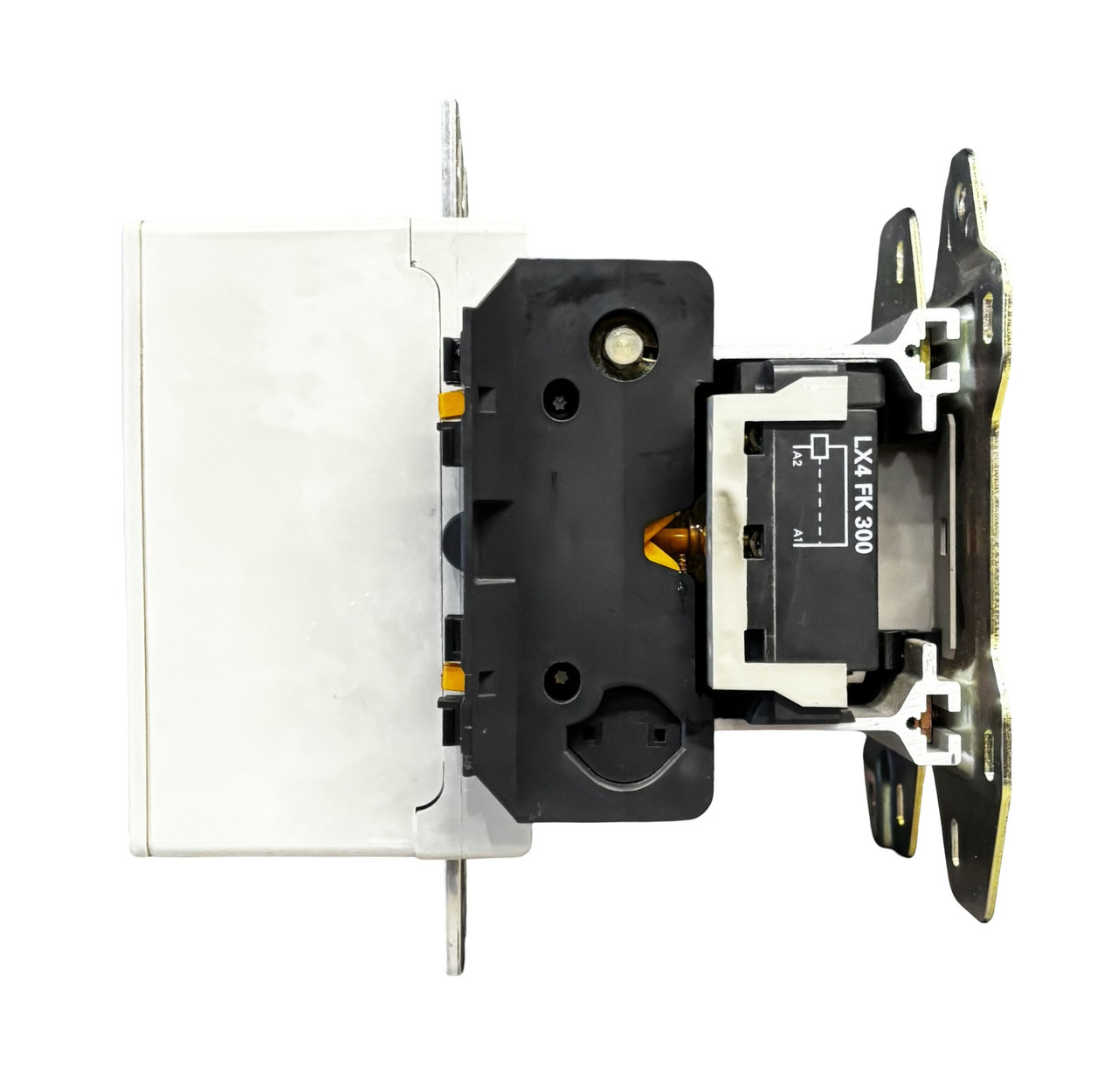

The Telemecanique LC1F500 is a heavy-duty 3-pole magnetic contactor from Schneider Electric’s TeSys F series, designed for high-power motor control and industrial switching applications. This configuration includes the LX4FK300 control coil, eliminating the need to source a separate coil and ensuring compatibility out of the box.
Rated for 500A AC-3 inductive current and 700A AC-1 resistive current, the LC1F500 is ideal for large motors and demanding industrial loads. The contactor features bolt-on power terminals, plate mounting, and a rugged construction built for long service life in harsh environments.
Key Features
• Heavy-duty TeSys F series magnetic contactor
• Includes LX4FK300 control coil
• 3-pole design with three normally open power contacts
• High current capacity for large motor and power loads
• Bolt terminals accept cable lugs or busbar connections
• Surface / plate mounting design
Technical Specifications
• Brand: Telemecanique / Schneider Electric
• Model: LC1F500
• Included Coil: LX4FK300
• Product Type: Magnetic Contactor
• Poles: 3-Pole
• Power Contacts: 3 Normally Open (NO)
• Current Rating:
– 500 A AC-3 (inductive, ≤440 V)
– 700 A AC-1 (resistive, ≤40 °C)
• Operational Voltage:
– Up to 1000 V AC
– Up to 460 V DC
• Insulation Voltage: 1000 V
• Motor Power Rating: Up to 250 kW at 400 V
• Connections: Bolt terminals for lugs or busbars
• Mounting: Plate / surface mounting
• Dimensions (Approx.):
9.4 in (H) × 9.2 in (W) × 9.1 in (D)
• Weight: Approx. 21.5 lb
Applications
• High-power motor starters
• Industrial motor control centers (MCCs)
• Large pumps, compressors, and conveyors
• Heavy-duty power switching applications
