Product Description

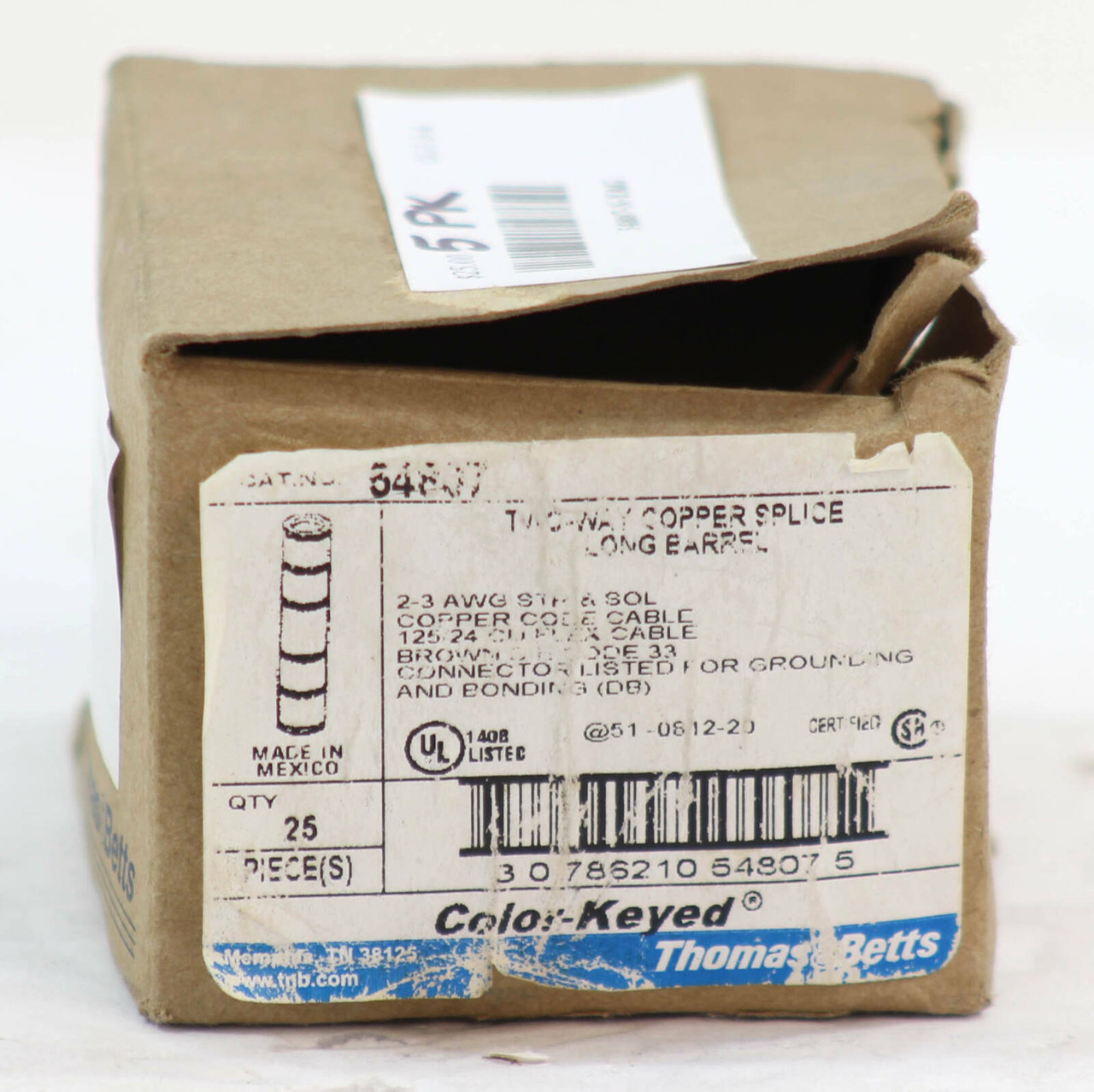

The Thomas & Betts 54807 is a high-quality, non-insulated copper compression splice connector designed to create a strong, low-resistance electrical connection between #2 AWG copper conductors. Featuring a long-barrel design and electro-tin plated copper body, this splice provides excellent conductivity, corrosion resistance, and mechanical strength for demanding commercial and industrial electrical applications.
This two-way splice connector is engineered for crimp installation and is suitable for both standard building wire and flexible cable, making it a reliable solution for power distribution, grounding, and splicing applications.
Key Features
Long-barrel design allows for multiple crimps and enhanced pull-out strength
Electro-tin plated copper resists corrosion and oxidation
Non-insulated construction for use with heat shrink or tape insulation
Precision color-coded die system for proper crimping
Suitable for high-voltage and standard low-voltage applications
Technical Specifications
Product Type: Two-way splice connector, non-insulated compression splice
Conductor Size: #2 AWG copper wire
Flex Cable Compatibility: 50.4 kcmil (125/24)
Material: Electro-tin plated copper
Voltage Rating: 600 V to 35 kV
Length: 1.88 inches (1-7/8")
Outer Diameter: 0.43 inches (13/32")
Installation Method: Compression crimp
Die Code: 33 (Brown color code)
Applications
Copper conductor splicing
Power distribution systems
Industrial and commercial electrical installations
Grounding and bonding applications
