Product Description

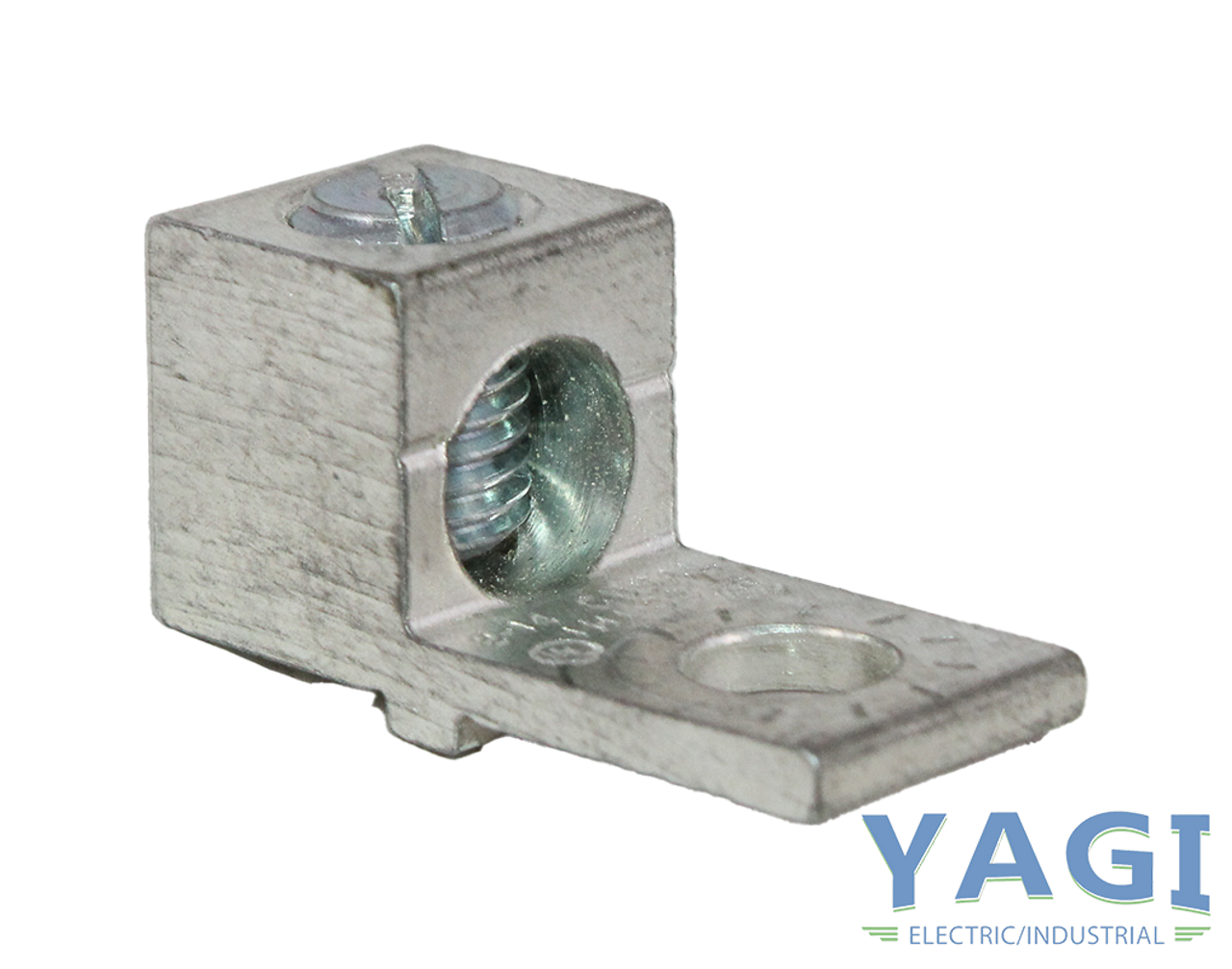

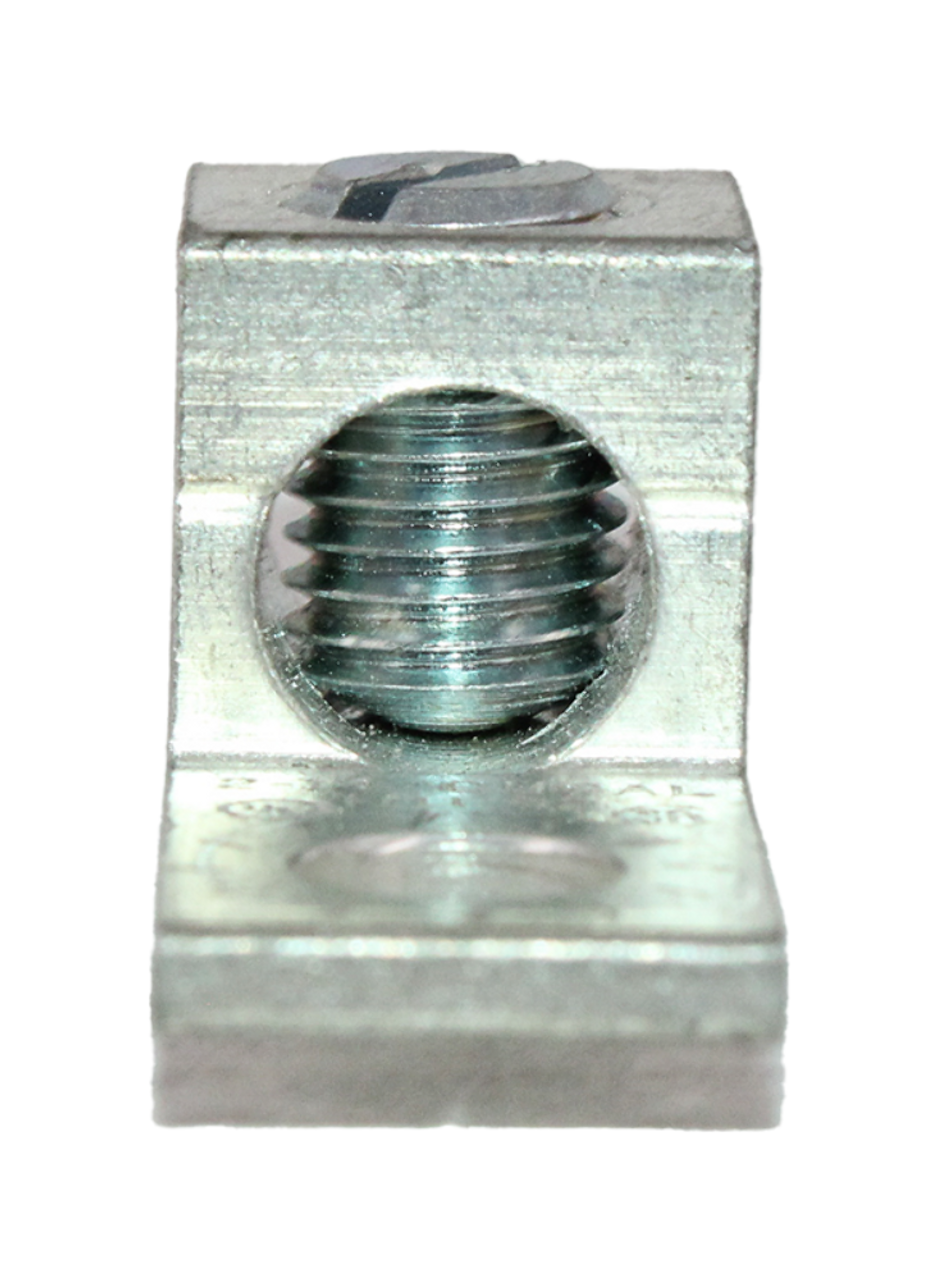

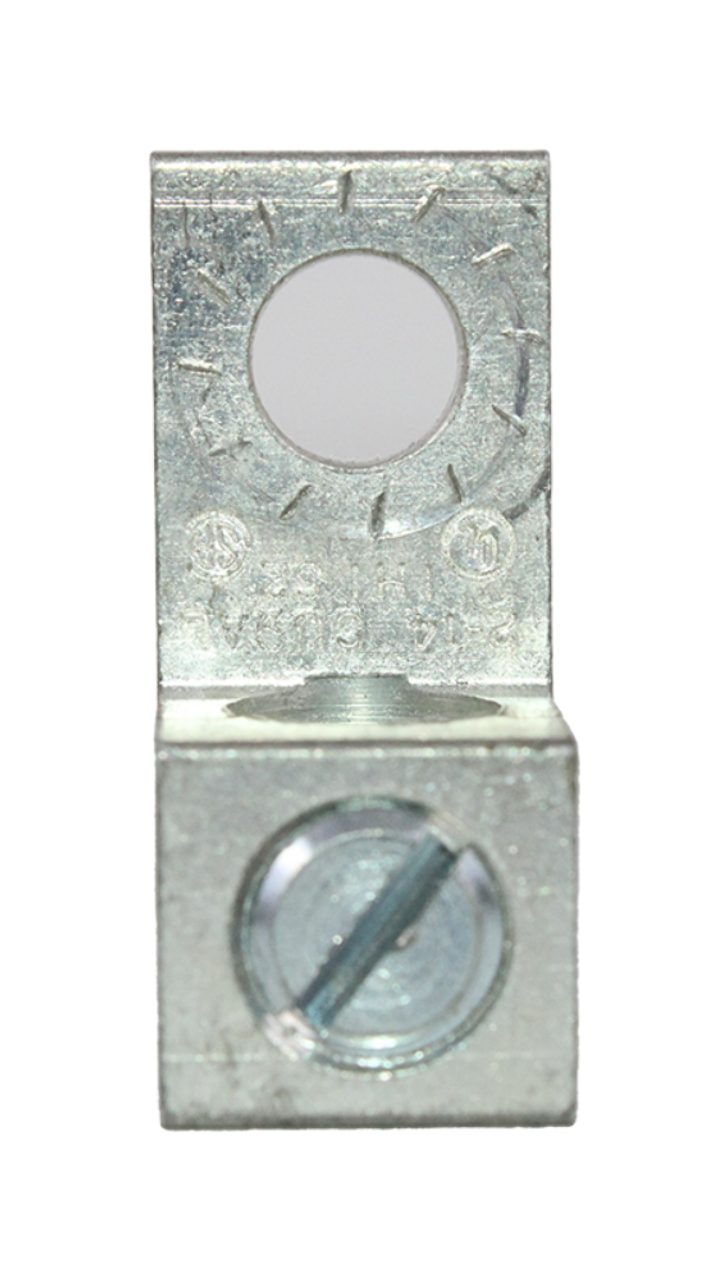

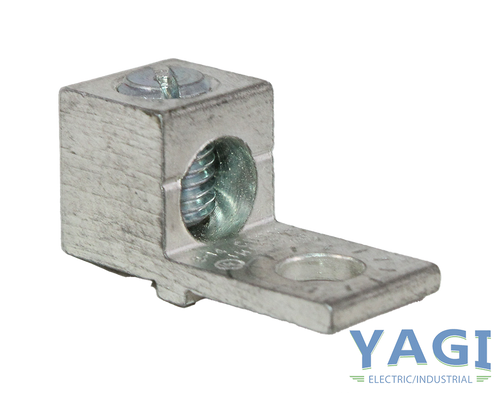

YAGI S2 Aluminum Mechanical Lug 2-14 AWG 1 Port 1 Hole
- Brand: YAGI
- MPN: S2
- Dimensions: Length: 1-1/8in, Width: 1/2in, Height: 5/8in
- Connection: Mechanical
- Number of Mounting Holes: 1
- Conductor Range: 2-14 AWG
- Number of Ports: 1
- Material: Aluminum
- Mounting Hole Size: 0.281 inches
- Other Wire Range: 4-16 with Ferrule / flex 4-12 AWG
- Screw Type: 0.051 inch Slotted Screw
- Bolt Size: 1/4
- Rating: CU9AL
- Dual Wire Class: B/C
- Wire Class: G-K
- Single Barrel
- Aluminum or Copper Wire
- Voltage Rating: 600V, 2000V or to 35KV (uninsulated) depending on application
- Temperature Rating: 90°C
SKU: IS.04182024.21
Product Videos
Custom Field
Lug Wire Size 2-14 AWG
Lug Material Aluminum
Lug Number of Mount Holes 1
Lug Connection Mechanical
Lug Number of Ports 1
Lug Mounting Hole Size 9/32
Lug Number of Mounting Holes 1
