Product Description

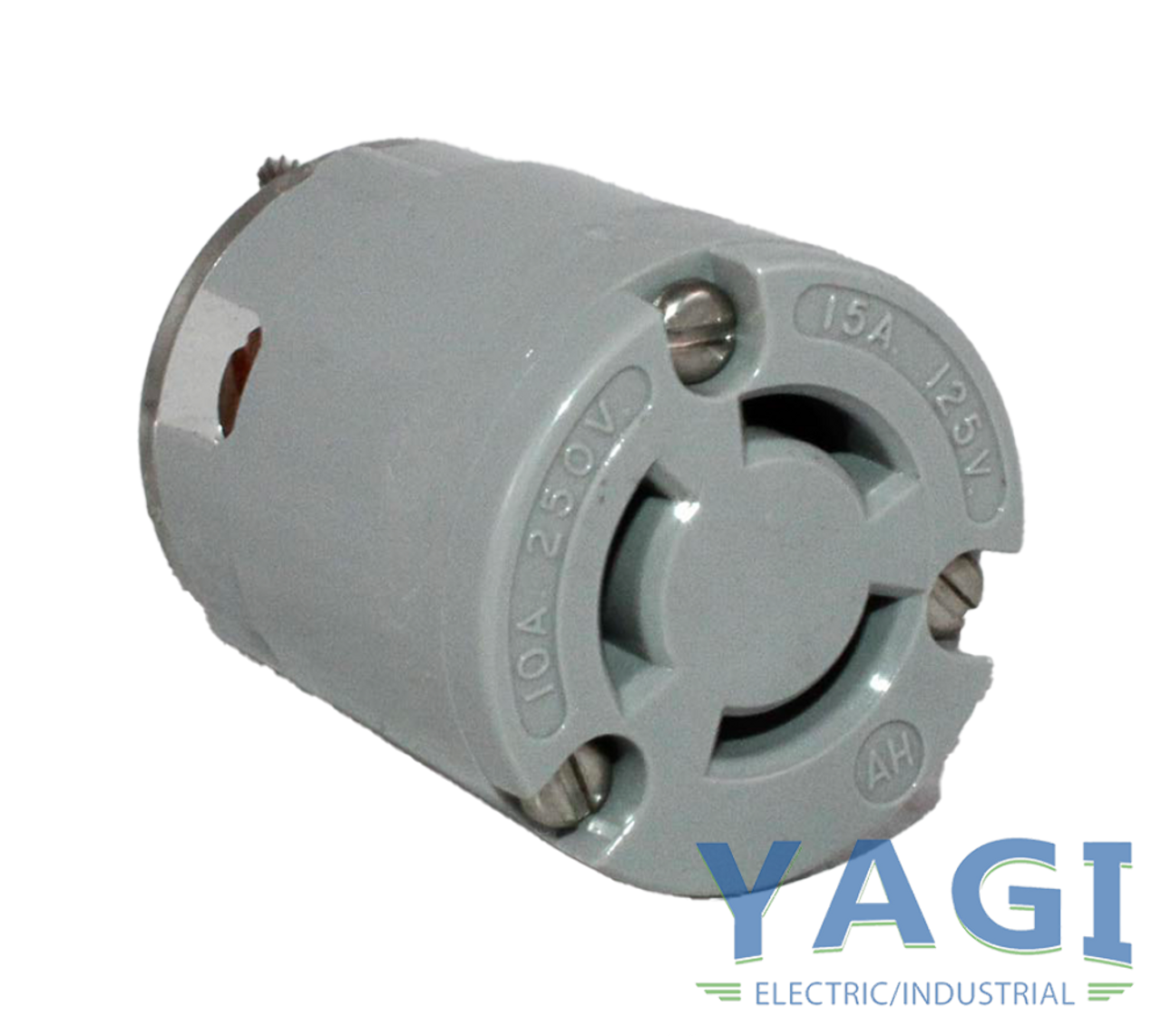

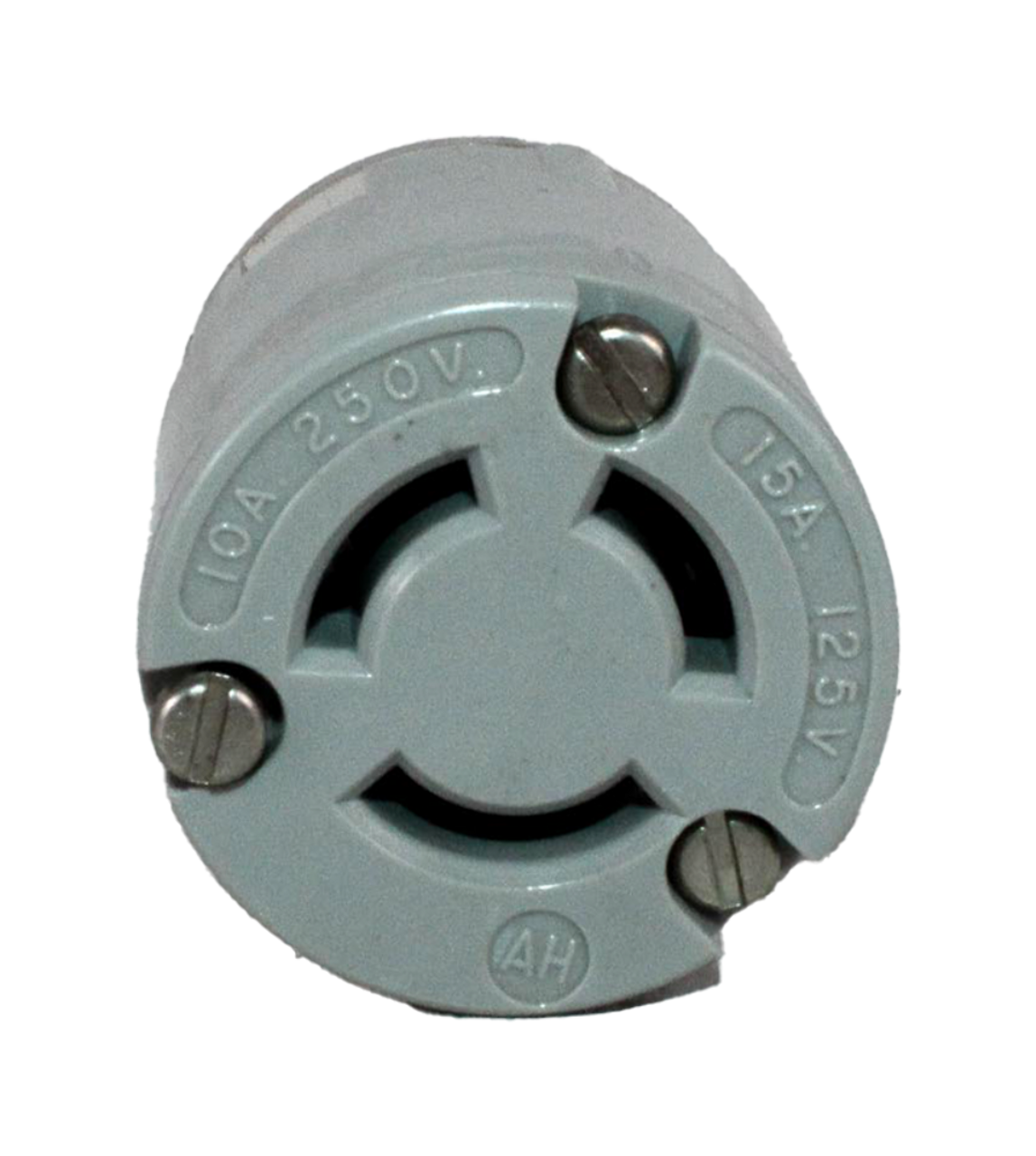

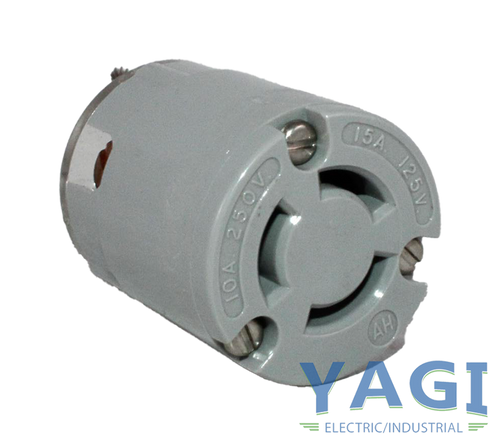

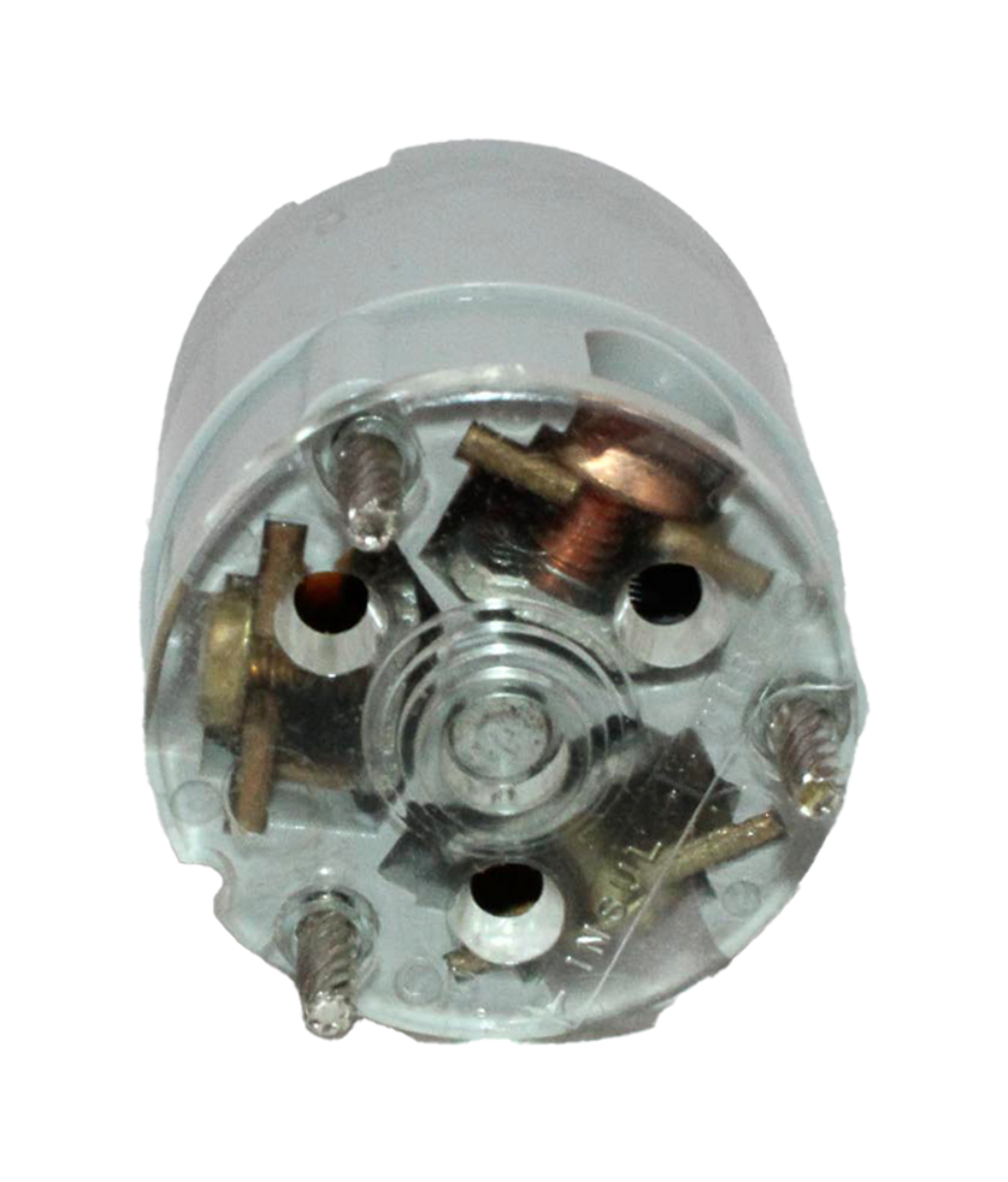

Eaton Arrow Hart 4755 Safety Grip Locking Connector #14-10 AWG 10A 15A 125/250VSPECIAL FEATURES: Safety grip locking receptacle
TYPE: Locking connector
AMPERAGE RATING: 10A, 15A
VOLTAGE RATING: 125/250 V
CONTACT MATERIAL: Brass
APPLICATION: Industrial
DEVICE GRADE: Heavy-duty specification grade
WIRING METHOD: Back
NUMBER OF WIRES: Non-grounding 3
NUMBER OF POLES: Three-pole
COLOR: Grey , Black
CORD DIAMETER: 0.25-0.656 in (6.4 mm-16.7 mm)
MATERIAL: Nylon
OPERATING TEMPERATURE: -40 to 75 °C (-40 to 167 °F)
ALLOWABLE WIRE SIZE: #14-10 AWG
NEMA CONFIGURATION: Non-NEMA
DESIGN TYPE: Safety grip
COMPLIANCES: Federal Specifications Classification W-C375
CERTIFICATIONS: cRUus , CSA certified , UL Listed
IS.05242024.18
