Product Description

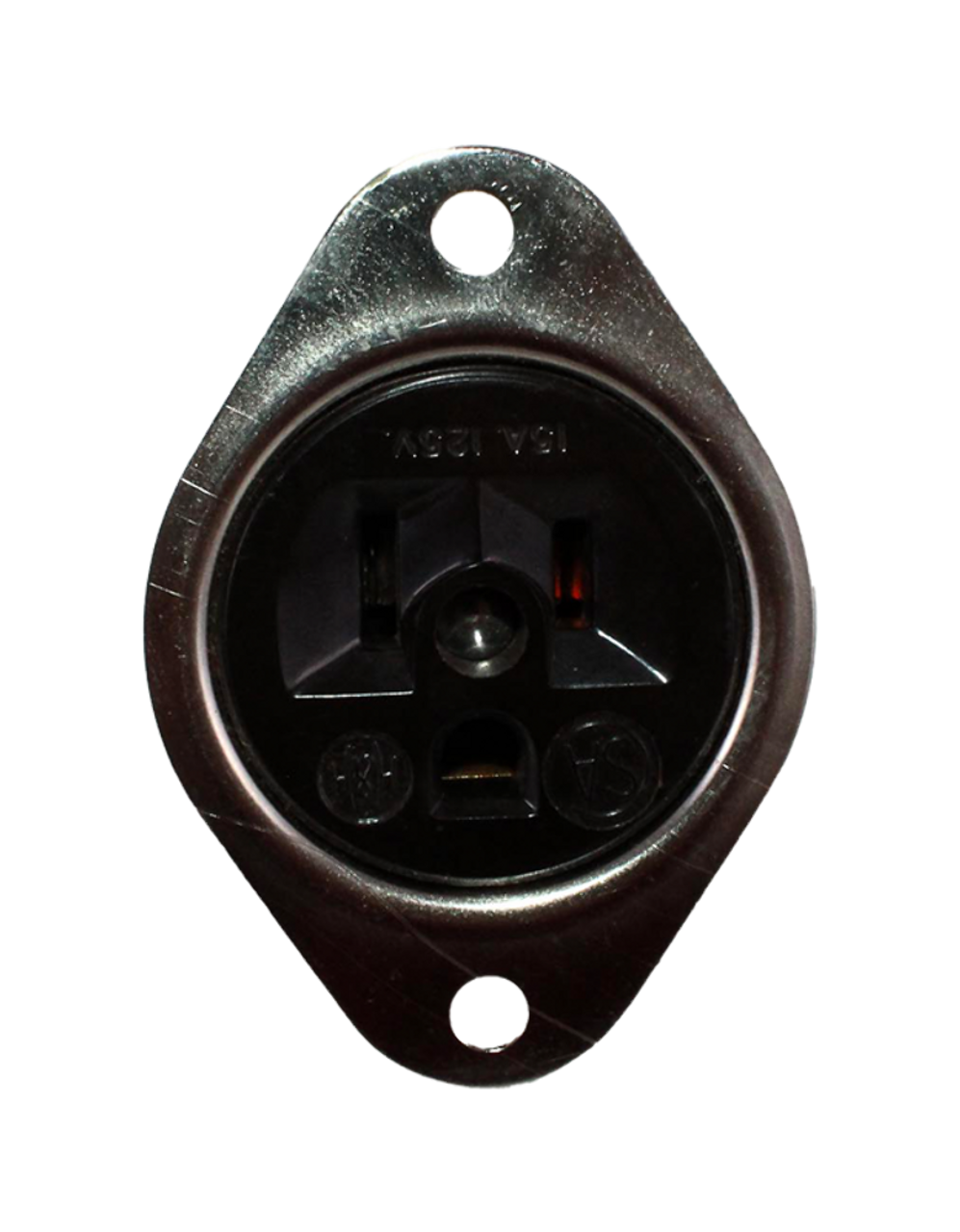

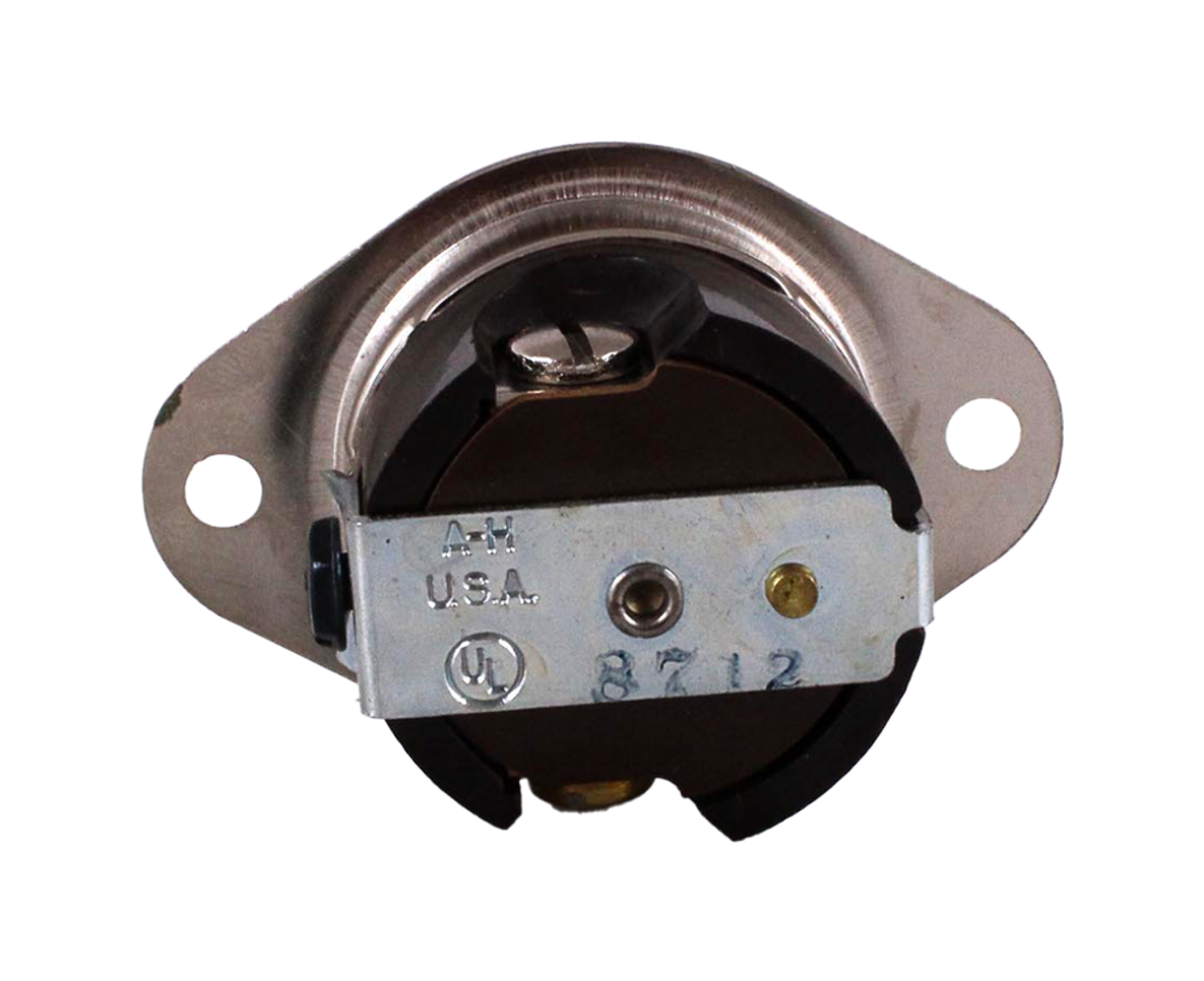

Eaton Arrow Hart 5246 Flanged Outlet #14 AWG, 15A 125V Steel Brass NEMA 5-15RDEVICE TYPE: Flanged outlet
TYPE: Flanged outlet
AMPERAGE RATING: 15A
VOLTAGE RATING: 125V
CONTACT MATERIAL: Brass
APPLICATION: Industrial
DEVICE GRADE: Heavy-duty industrial specification grade
WIRING METHOD: Side wire
NUMBER OF WIRES: 3
NUMBER OF POLES: Two-pole
STYLE TYPE: Flanged
MATERIAL: Metal
PACKAGING TYPE: Core pack
COLOR: Steel , Brown
CONNECTION TYPE: Screw
ALLOWABLE WIRE SIZE: #14 AWG
NEMA CONFIGURATION: 5-15R
DESIGN TYPE: Straight blade
FACE/BODY MATERIAL: Nylon , Steel
CERTIFICATIONS: cULus Listed , Federal Specification Classification 6233 01
IS.05242024.16
