Product Description

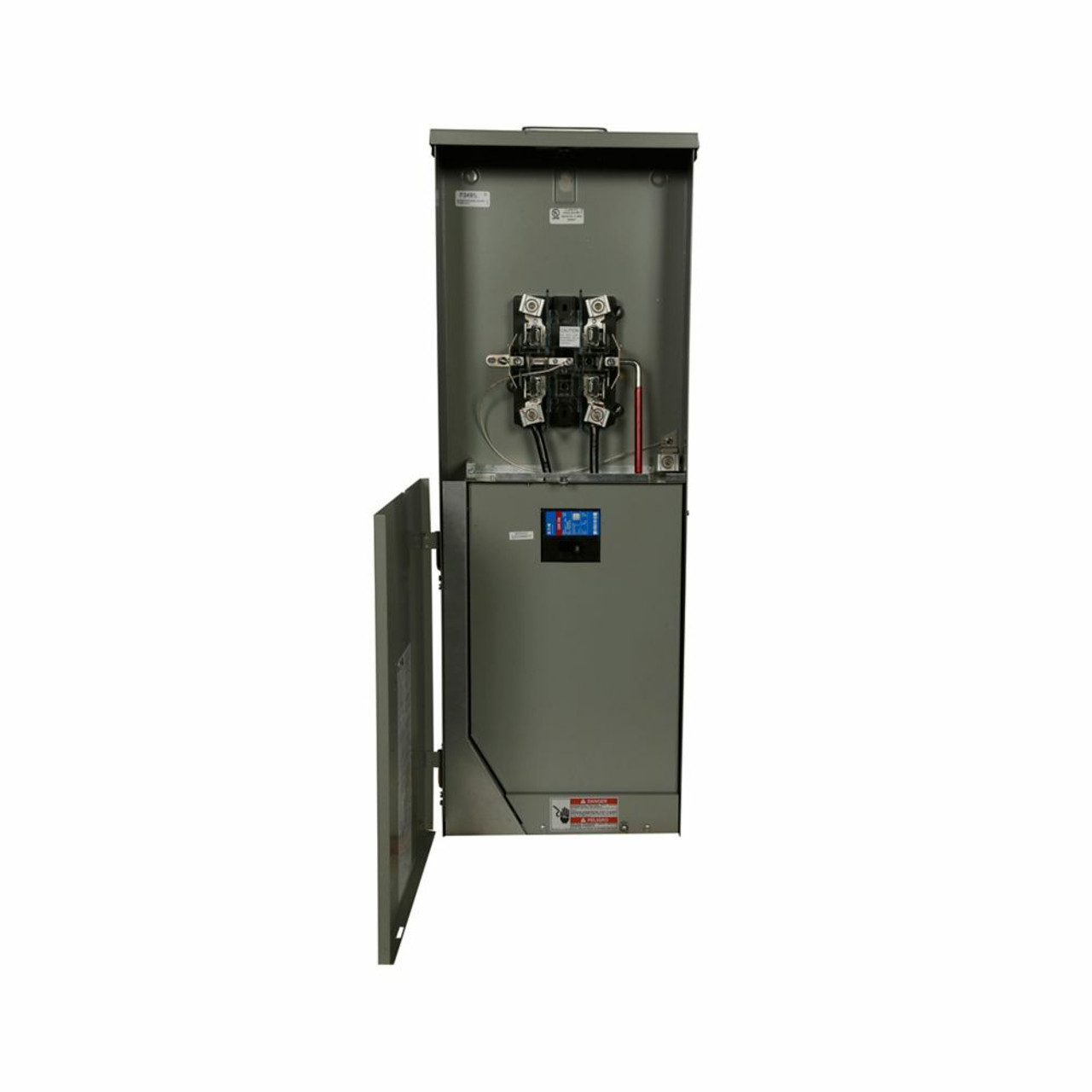

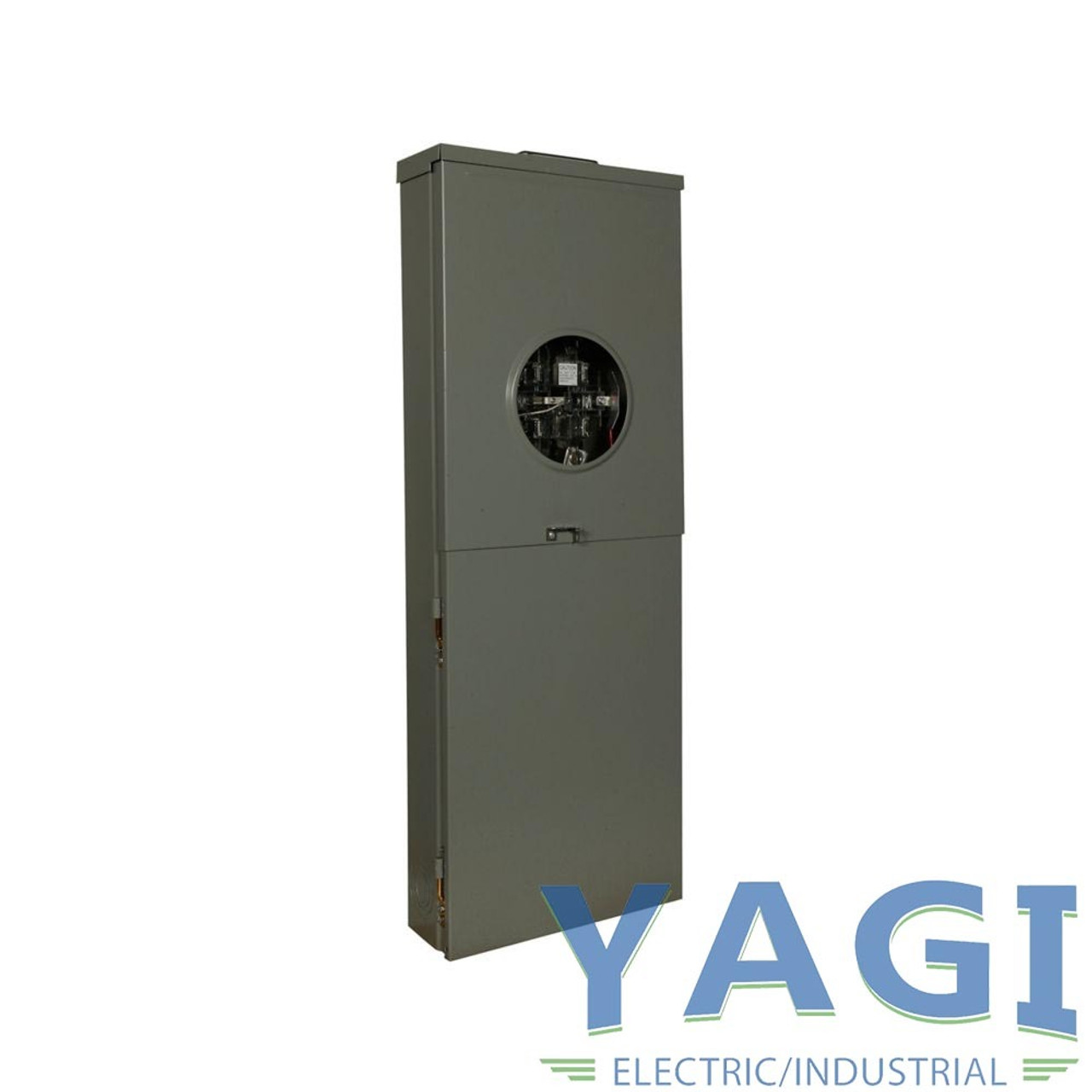

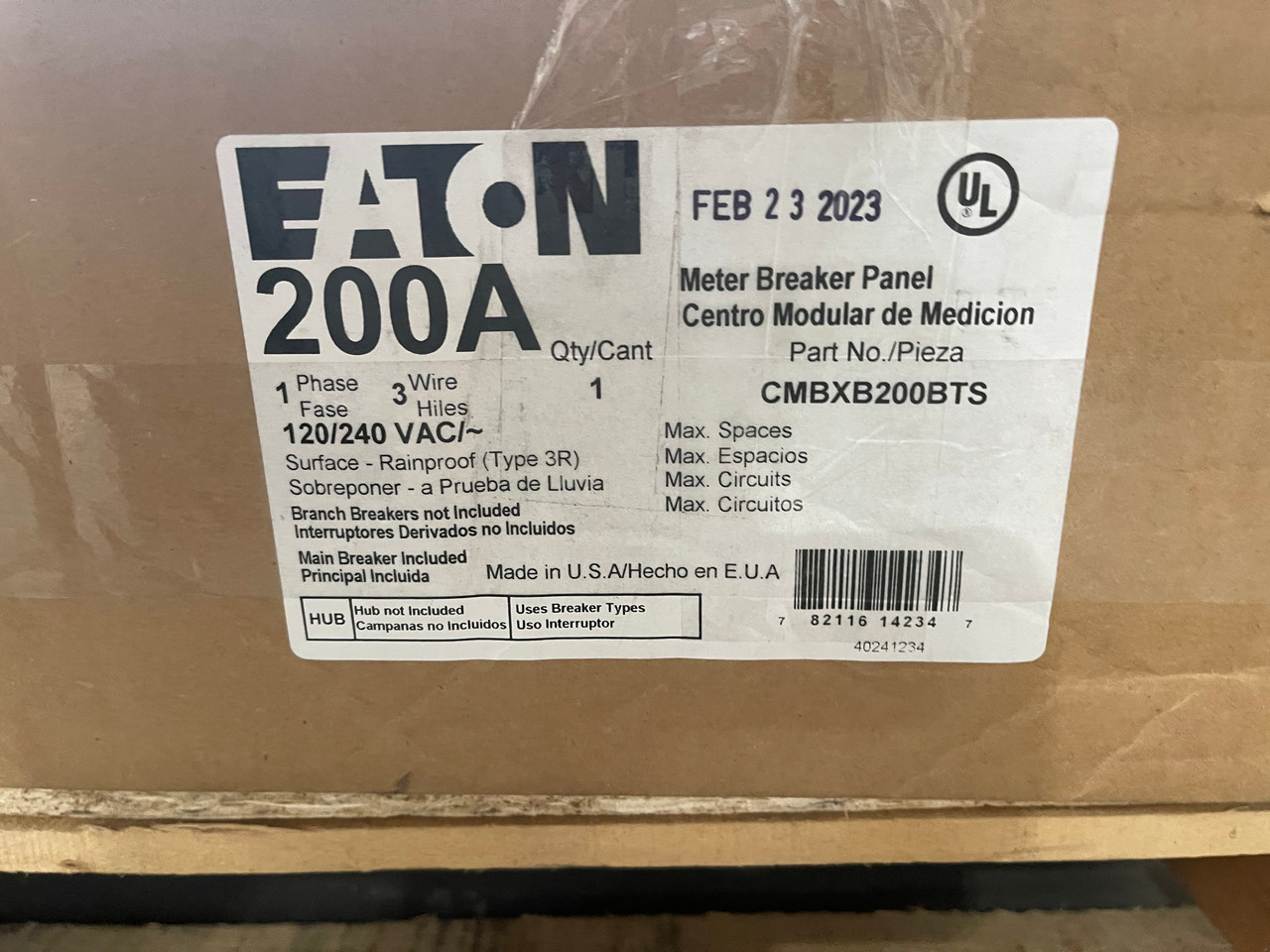

Eaton CMBXB200BTS All-In-One Lever Bypass Residential Meter Breaker 1-Socket Type CH 200A 120/240 VAC 1PH NEMA 3R- 200 Amp
- 120/240 VAC
- Interrupt rating: 10 kAIC
- 1 PH
- Used with: Type CH breakers
- Bypass: Lever
- Box size: C
- NEMA 3R
- Ground: #6-350 kcmil
- Number of sockets: 1
- Bus material: Copper
- Feed type: Top/bottom
- Main circuit breaker: CSR2200
- Number of jaws: Five-jaw
- Type: All-in-ones
Product Videos
Custom Field
Bin Location Z-W-P-7
Meter Amps 200
Meter Volts 120/240
Meter Phase 1
Meter Nema 3R
