Product Description

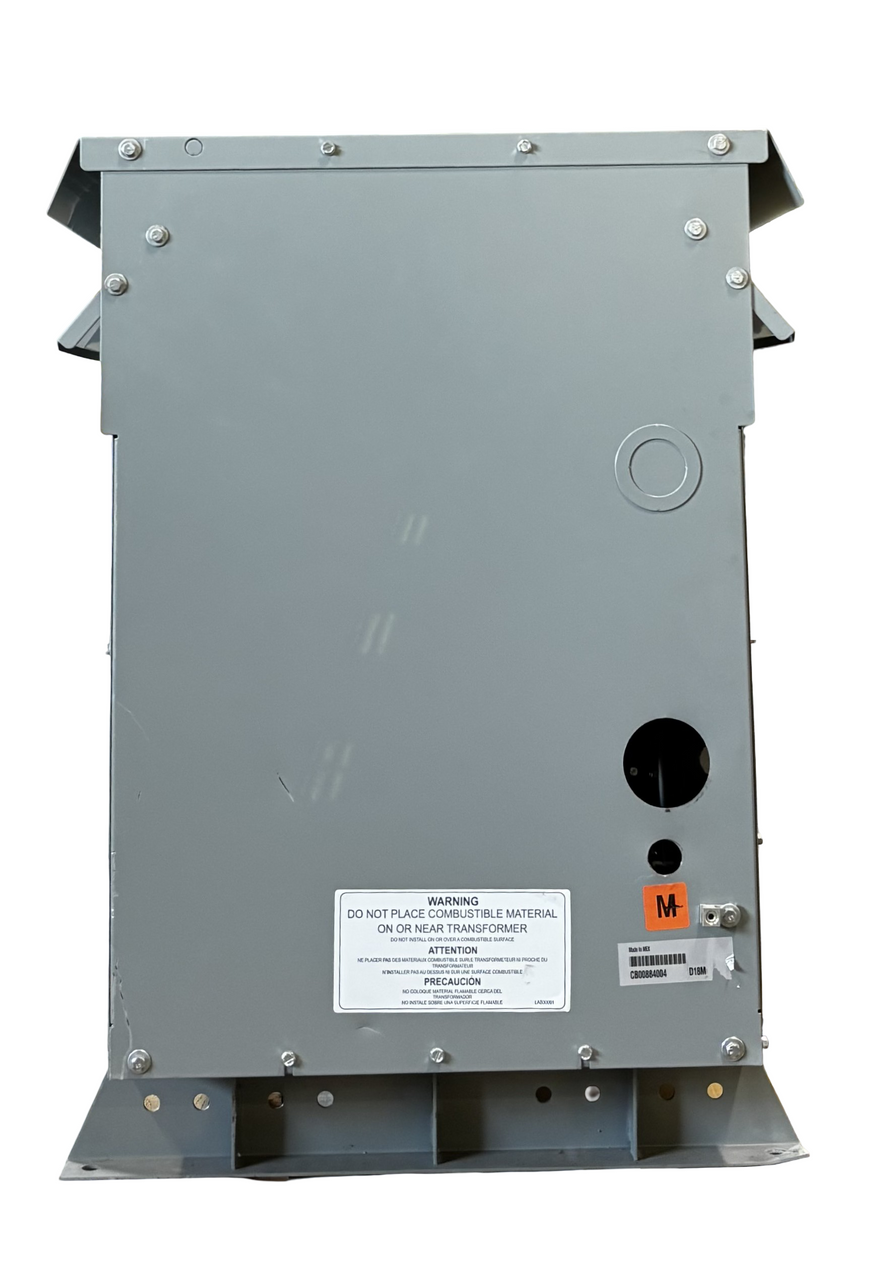

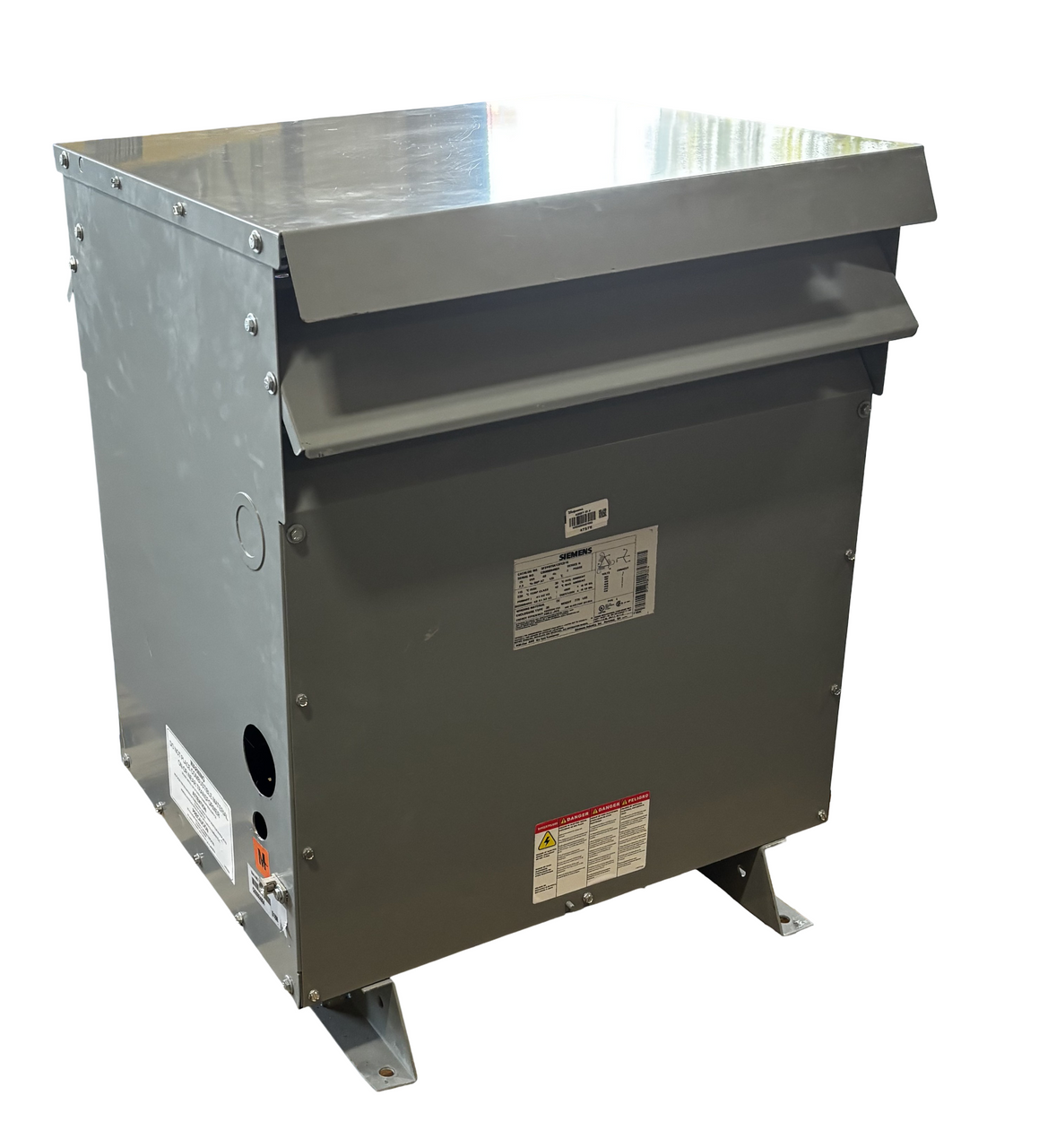

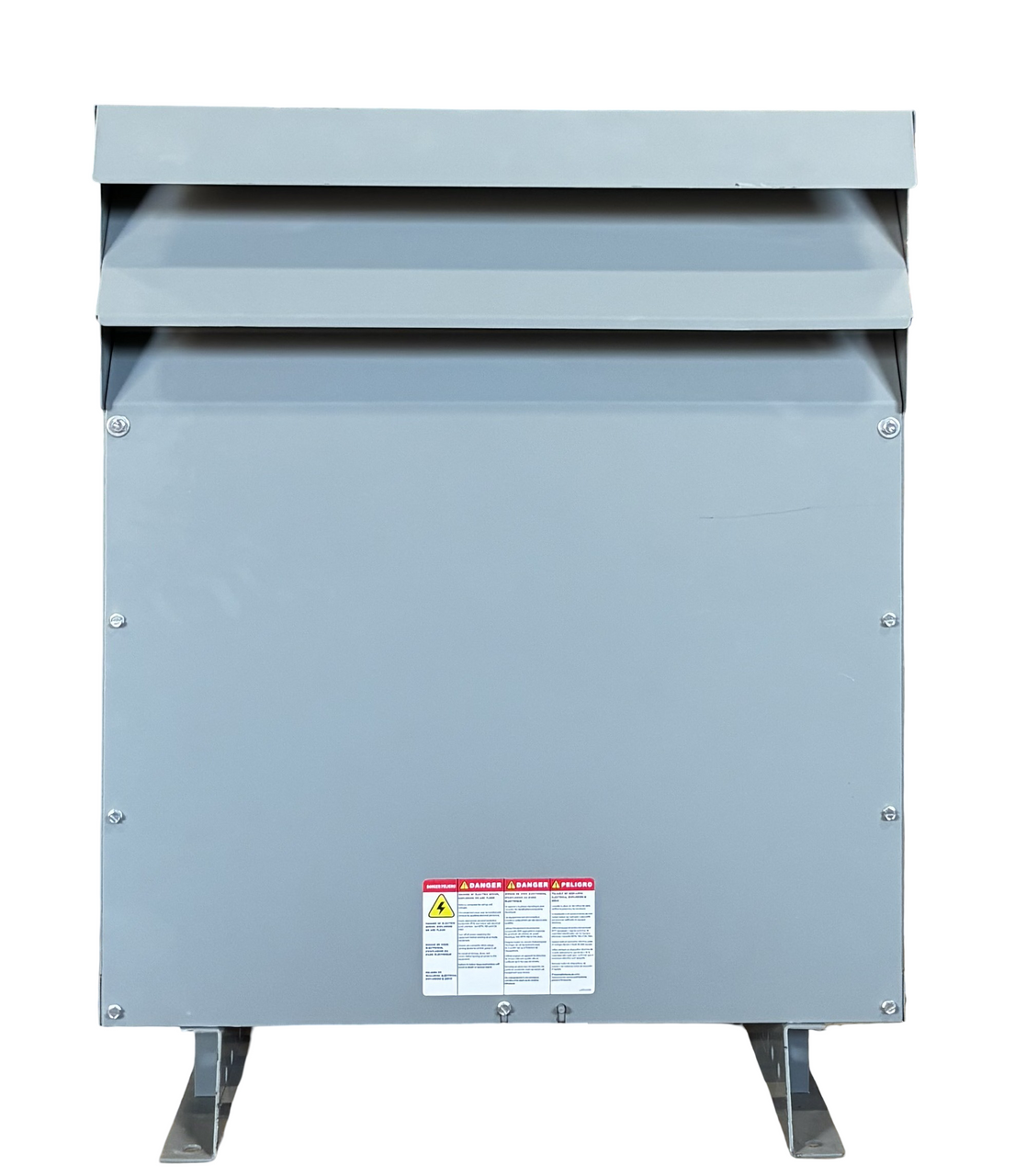

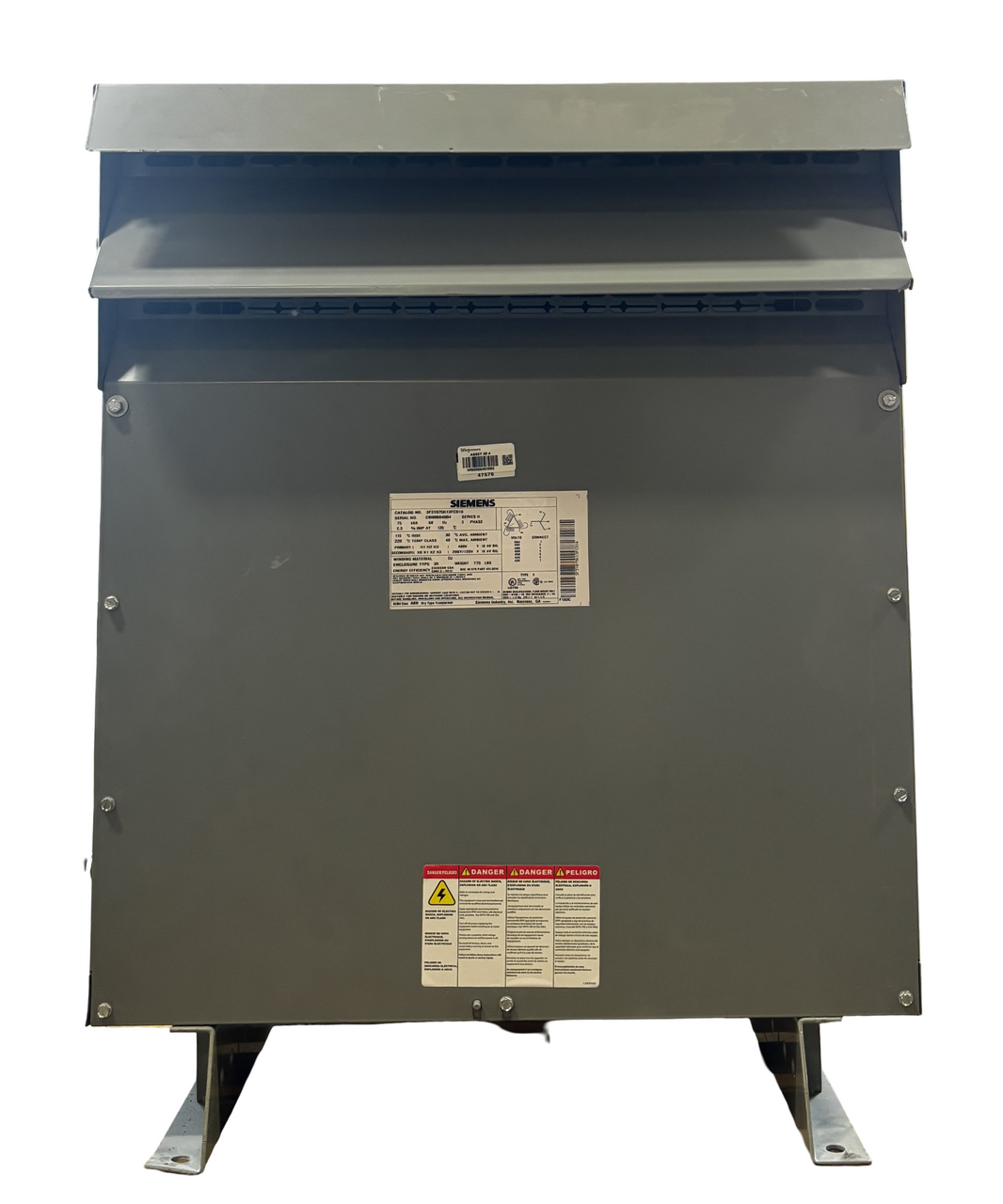

The Siemens 3F3Y075K13FCD16 Transformer is a high-performance dry-type distribution transformer designed for commercial and industrial applications. With a 75kVA power rating, this 3-phase transformer efficiently steps down voltage from 480V primary to 208Y/120V secondary. Built with copper windings, a 115°C temperature rise, and a durable NEMA 3R enclosure, it provides long-lasting reliability in demanding environments.
Specifications:
-
Brand: Siemens
-
Model: 3F3Y075K13FCD16
-
Power Rating: 75kVA
-
Frequency: 60Hz
-
Phase: Three-Phase
-
Primary Voltage: 480V
-
Secondary Voltage: 208Y/120V
-
Temperature Rise: 115°C
-
Winding Material: Copper
-
Enclosure: NEMA 3R (Outdoor Rated)
-
Type: Dry-Type Distribution Transformer
Applications:
-
Commercial buildings
-
Industrial facilities
-
Institutional power distribution
-
Electrical system upgrades
-
Energy-efficient installations
