Product Description

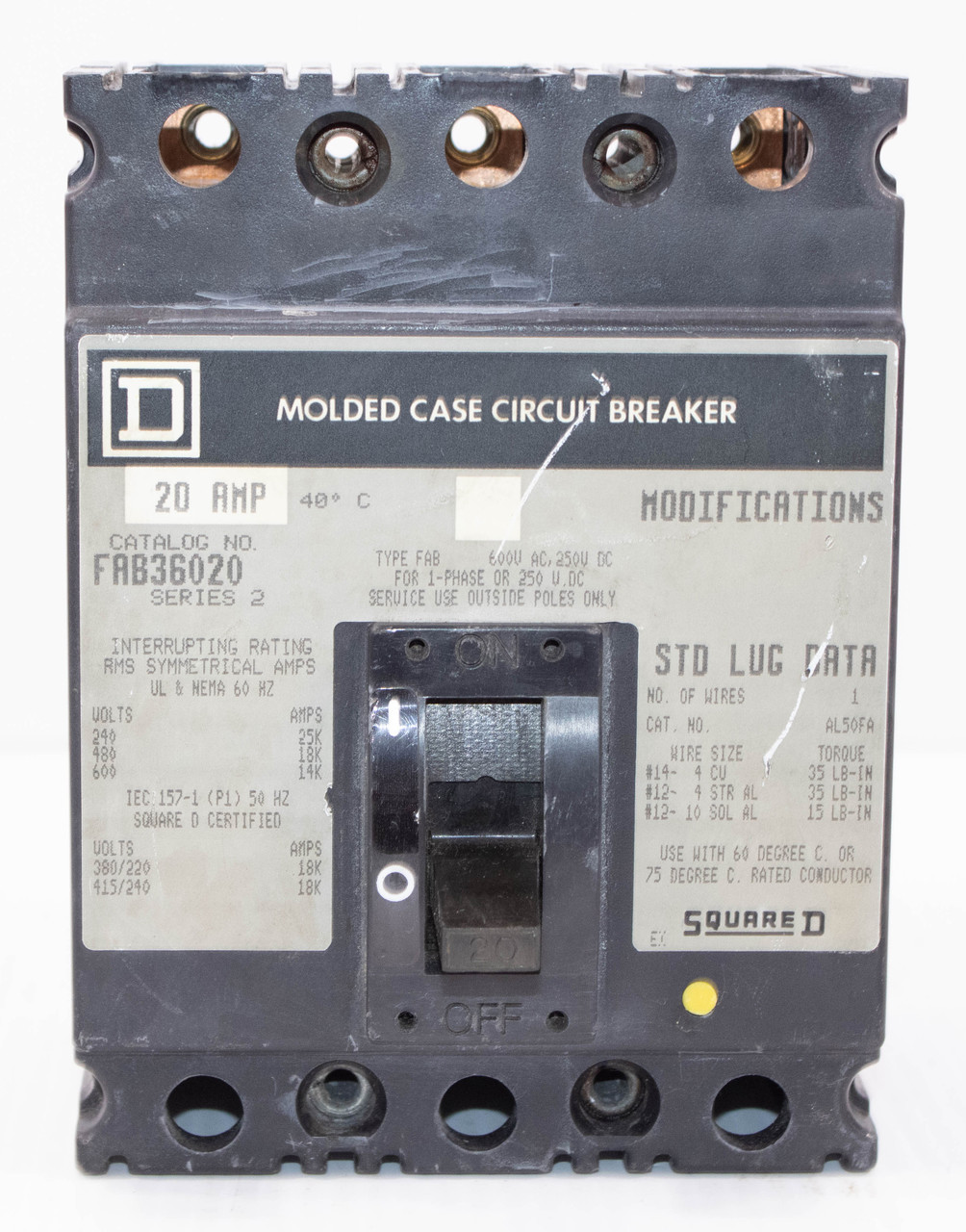

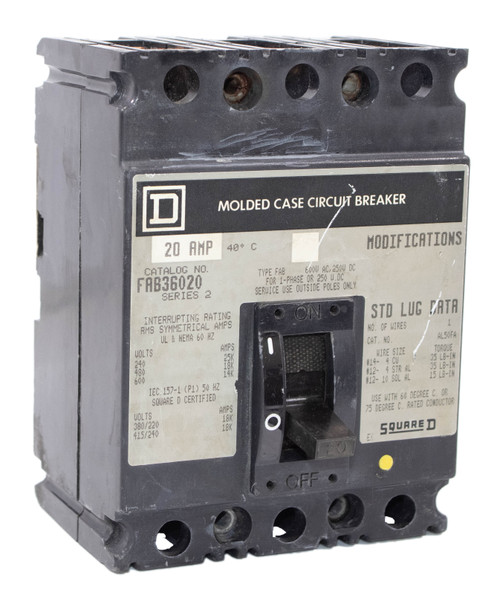

Square D FAB36020 Breaker 20A 600V 3P 14KA I-Line Thermal MagneticFAB36020-UA1-YAG
- Thermal-magnetic
- Molded Case
- I-Line
- TYPE FAB
- Interrupting
- 600v 14ka
- 480v 14ka
- 240v 18ka
- F Frame
| Line Rated Current | 20 A |
|---|---|
| Number of Poles | 3P |
| Breaking capacity code | A |
| Mounting Mode | Bolt-on |
| Magnetic Hold Current | 275 A |
| Magnetic Tripping Current | 600 A |
| Electrical connection | I-Line connection line Bolted connection load |
| Terminal identifier | AL50FA |
| Phase connection | ABC |
Product Videos
Custom Field
Breaker Amps 20
Breaker Volts 600
Breaker Poles 3
Breaker AIC 14
Breaker Mounting Style I-Line
Bin Location C-1-2-1
