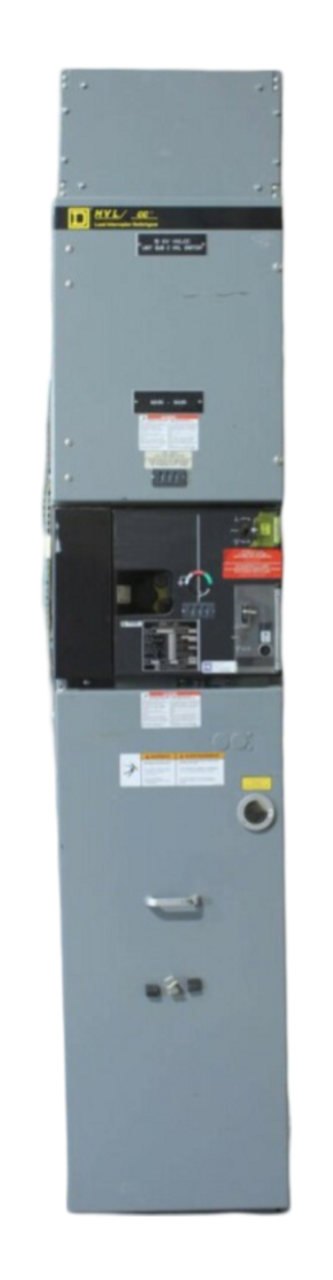

Square D HVL/CC 17-25647158-001 Load Current Interrupter Switchgear 600A NEMA1

Product Description

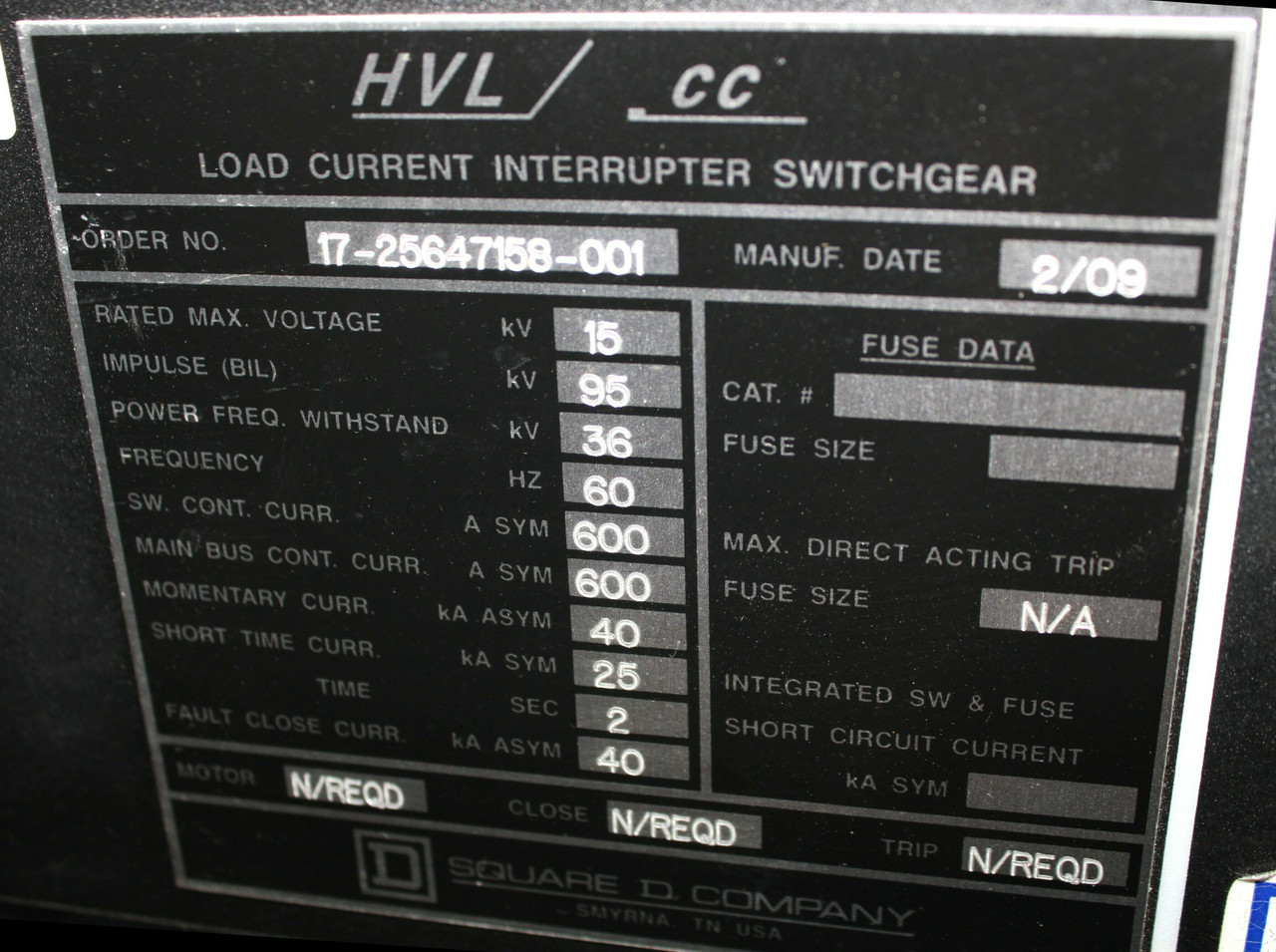

Square D HVL/CC 17-25647158-001 Load Current Interrupter Switchgear 600A NEMA1

• 600 Amp
• NEMA: 1
• Rated Max Voltage 15kv
• Impulse (BIL) 95kV
• Power Freq. Withstand 36kV
• Frequency 60Hz
• SW. Cont. Curr. A SYM 600
• Main Bus Contr. Curr. A SYM 600
• Momentary Curr. kA ASYM 40
• Short Time Curr. kA SYM 25
• Time Sec 2
• Fault Close Curr kA ASYM 40
• Fuse Size: N/A

HVL/CC is the smallest footprint switchgear in the power distribution market. In addition to power fuse short circuit protection, it is packed with special switching features like current transformers, simplified grounding system, infrared viewing window, and optional control methods. Its compact Class 1 Div 2 design uses a factory sealed sulfur hexafluoride compartment for load break switching and power fuses for short circuit protection.

Depth: 20 Inches
Height: 108 Inches
Width: 38 Inches,
