Product Description

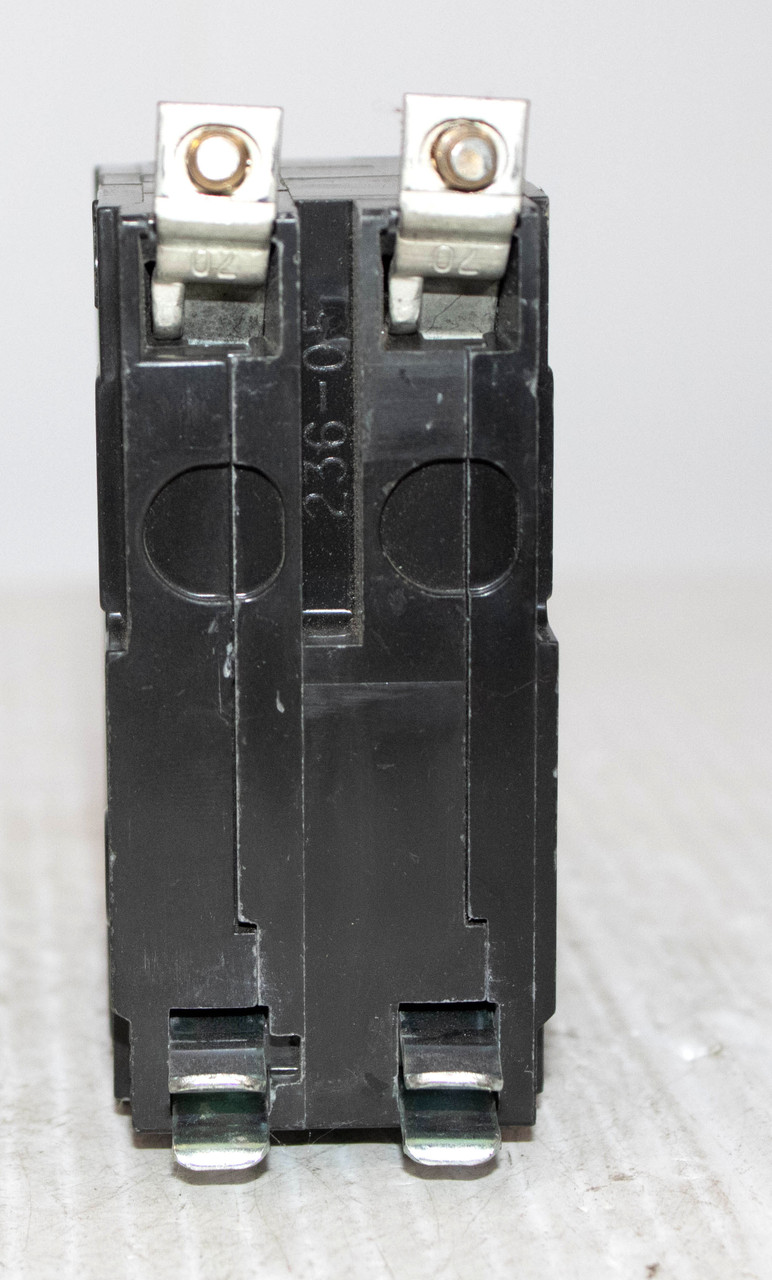

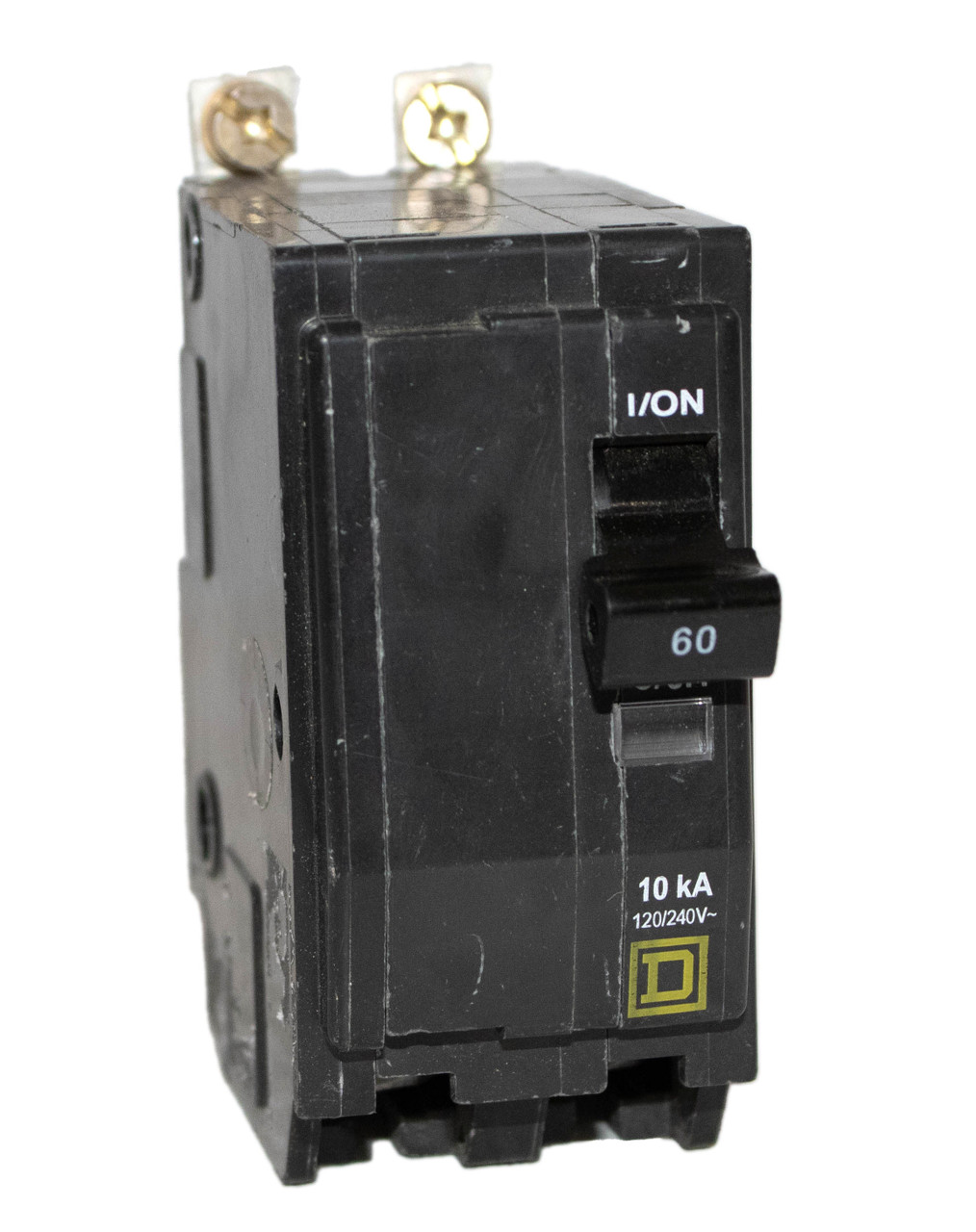

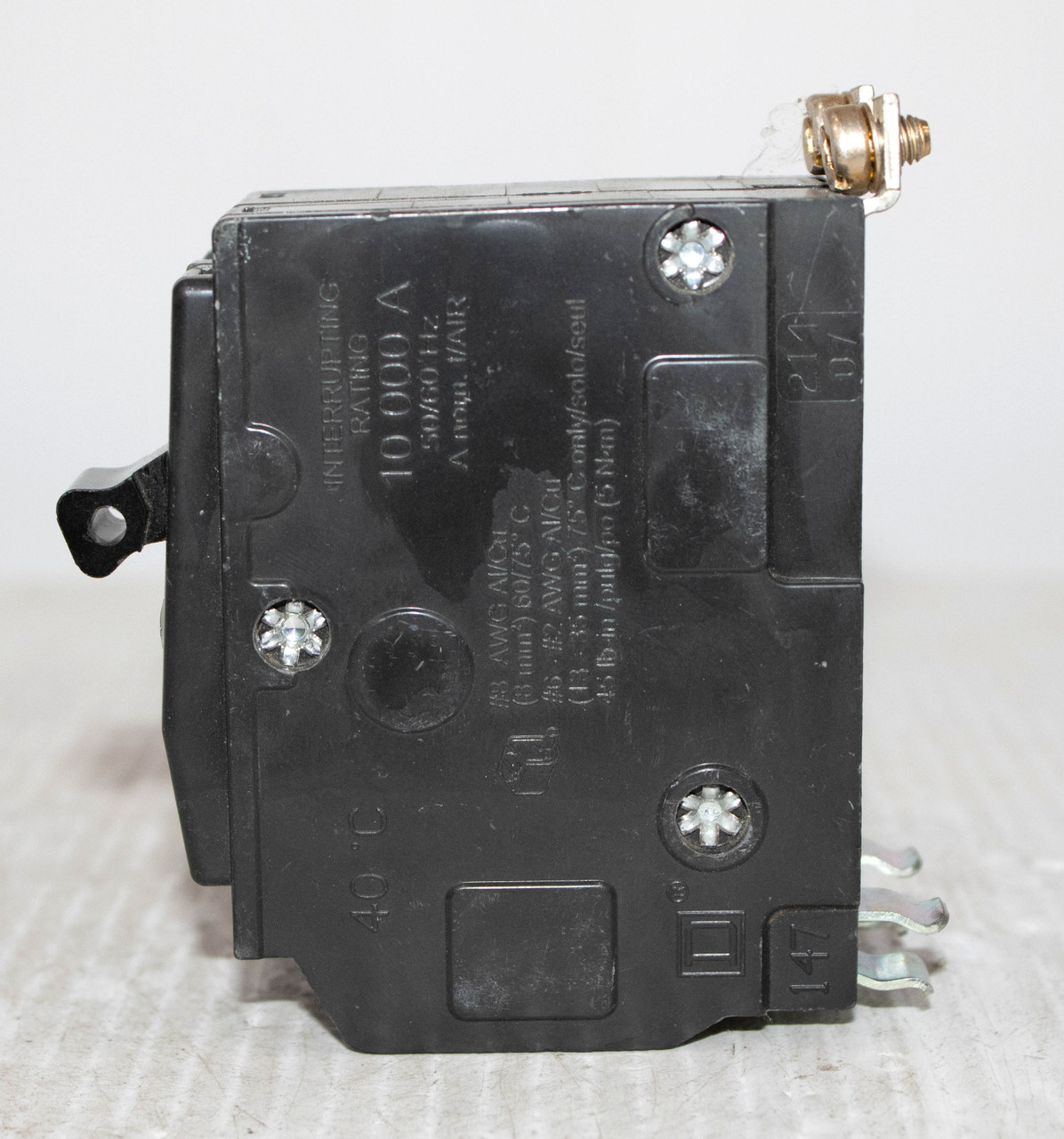

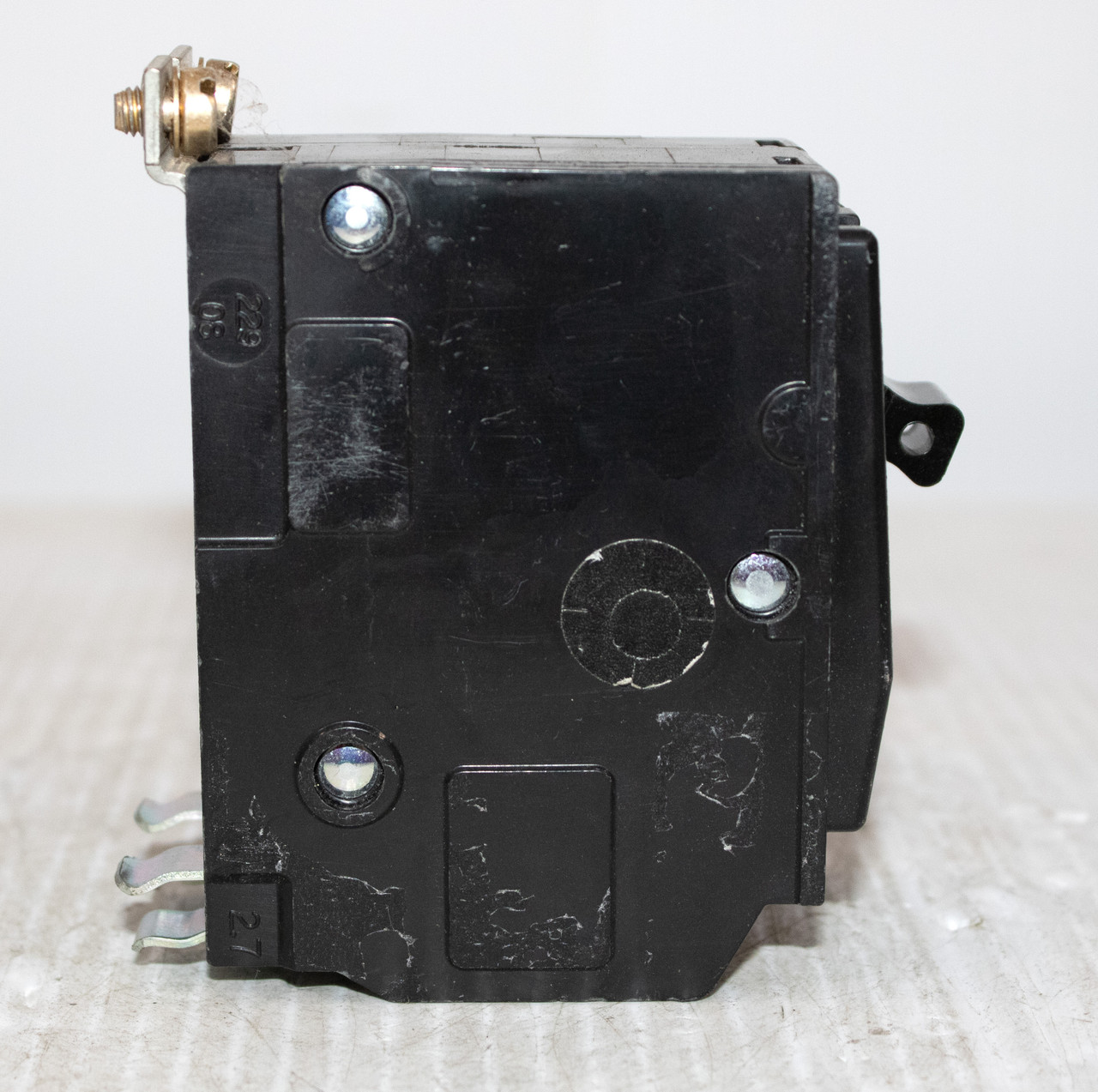

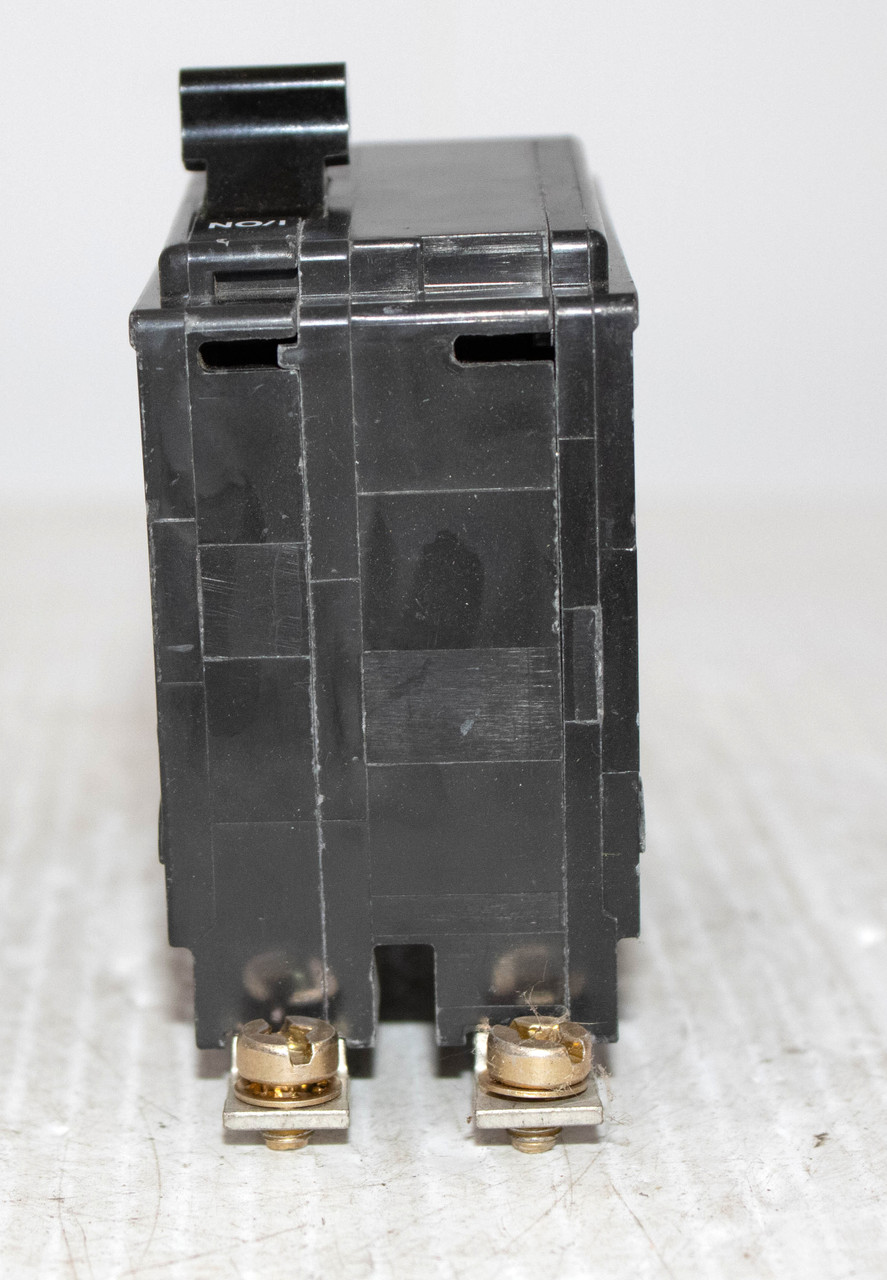

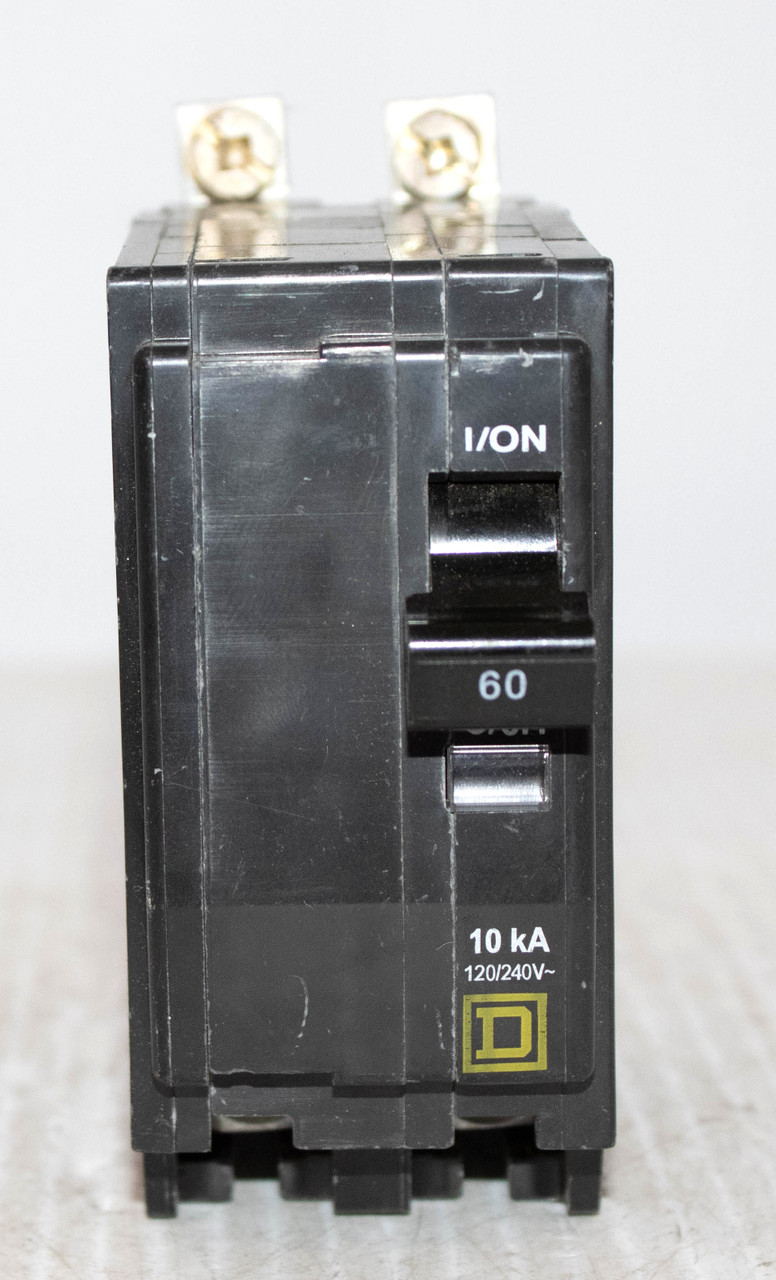

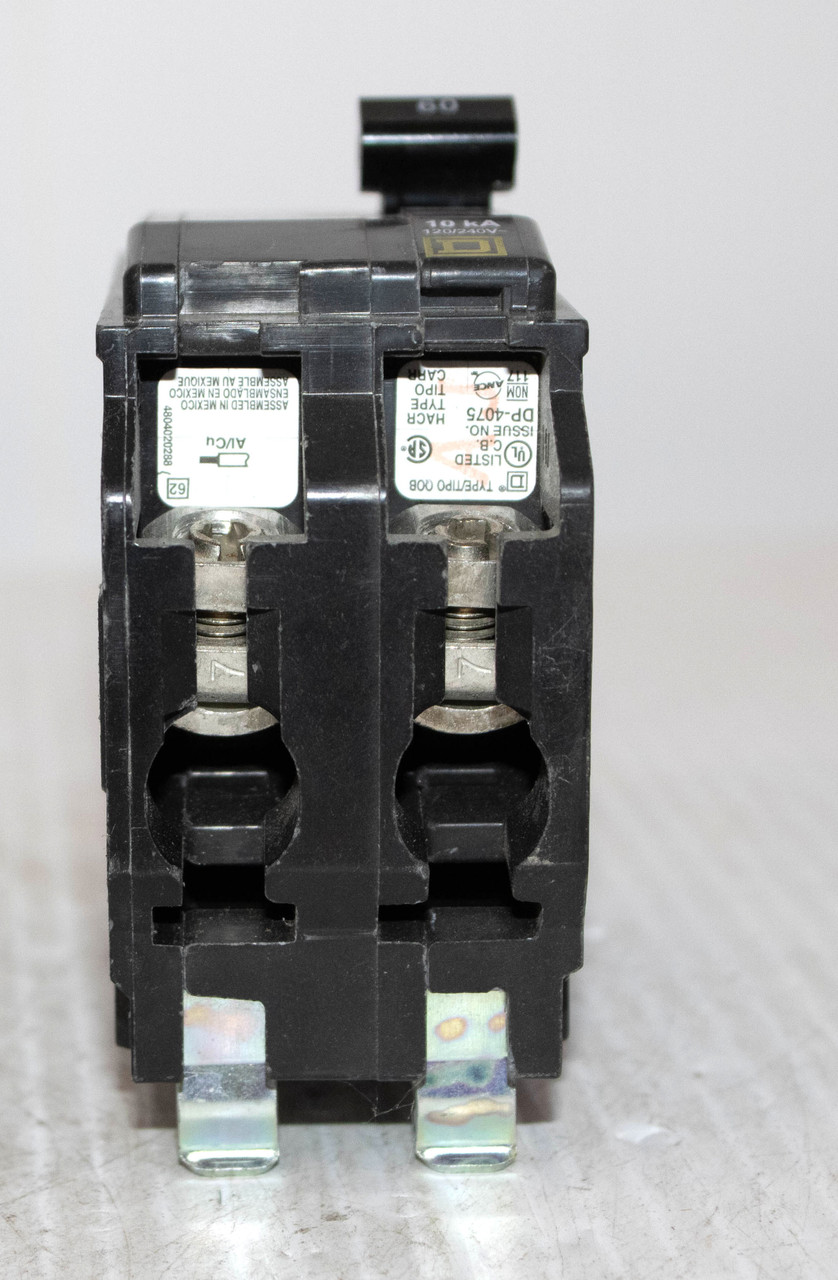

Square D QOB260 Breaker 60A 240V 2P 10KA Bolt OnQOB260-UA-YAG
- 60A
- 120/240V
- 2 POLE
- 10KA
- Bolt-on
- AWG 8AWG 2 copper or aluminium
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit This 2 pole QO circuit breaker is rated at 60A at 120/240VAC This unit provides 10kA breaking capacity and is bolt on mounting.
